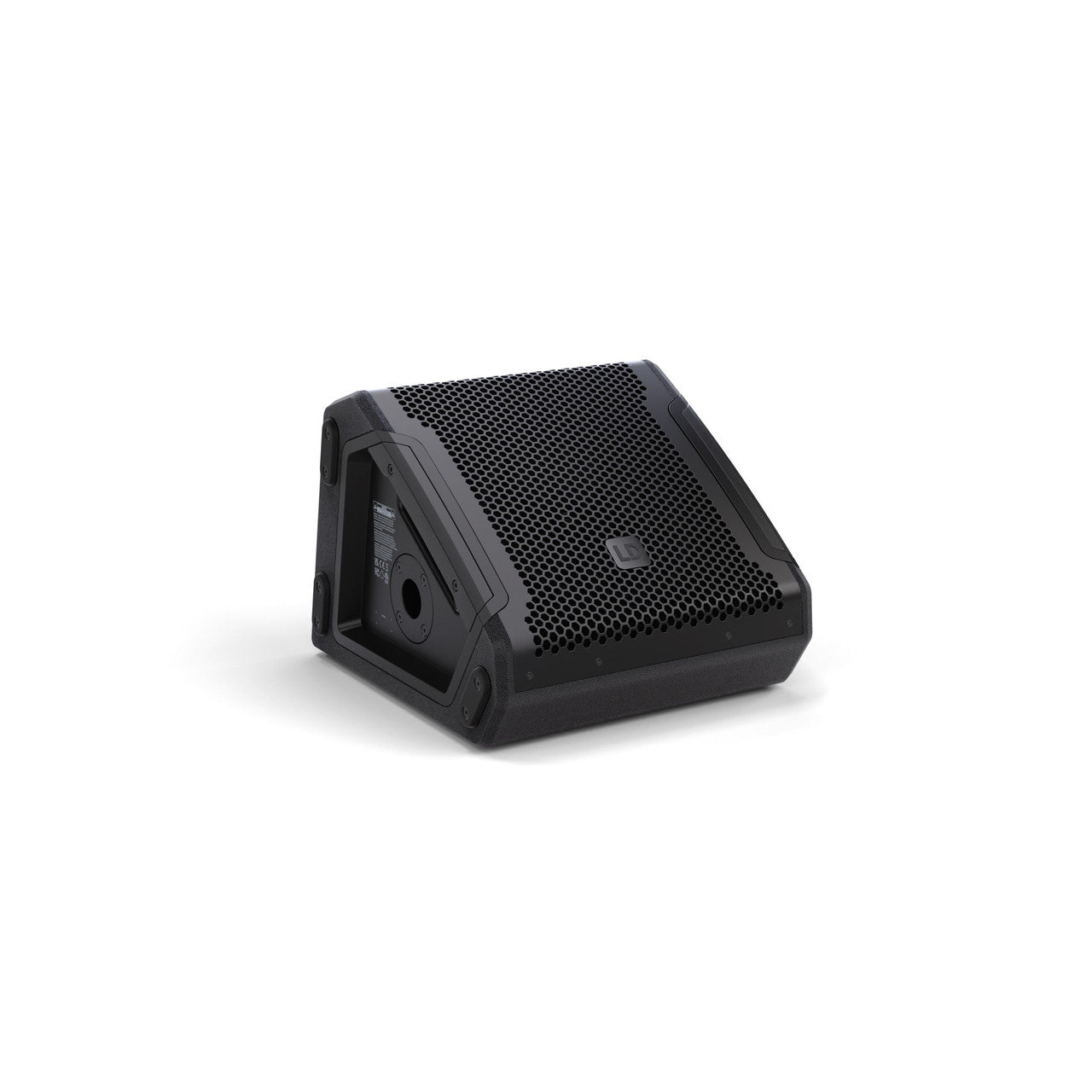

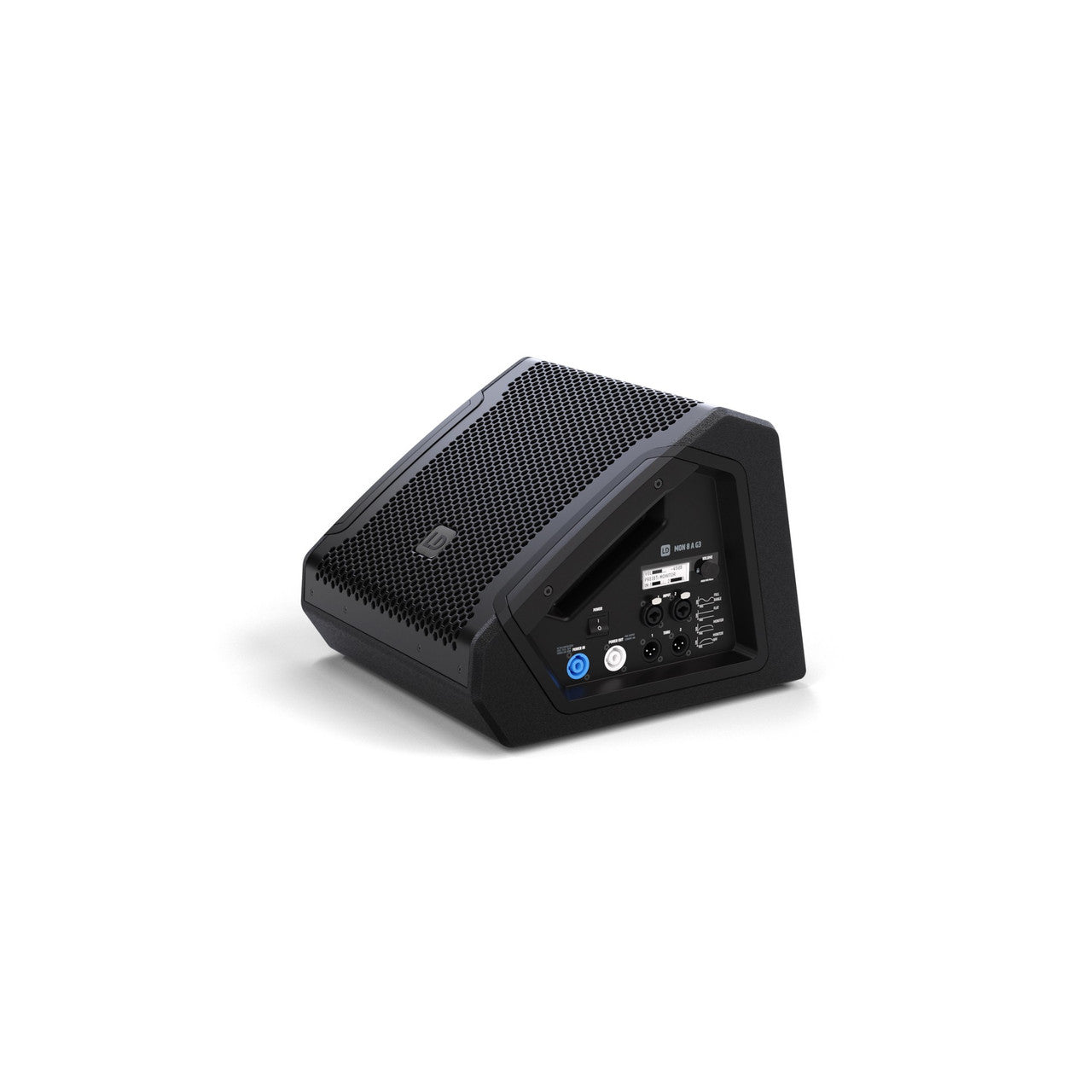

LD Systems MON 8 A G3 1,200W 8-inch Powered Coaxial Stage Monitor

LD Systems

(No reviews yet) Write a Review
$499.99
SKU:
LDS-MON8AG3
Condition:
New

OUT OF STOCK, email us for and ETA or to get this on order for you, if the item is discontinued we can suggest a replacement.

Product Overview

Compact high-performance stage monitor with top-of-the-range technologies

Class-D power amplifier with 300 W RMS/1200 W peak and 121 dB max. SPL

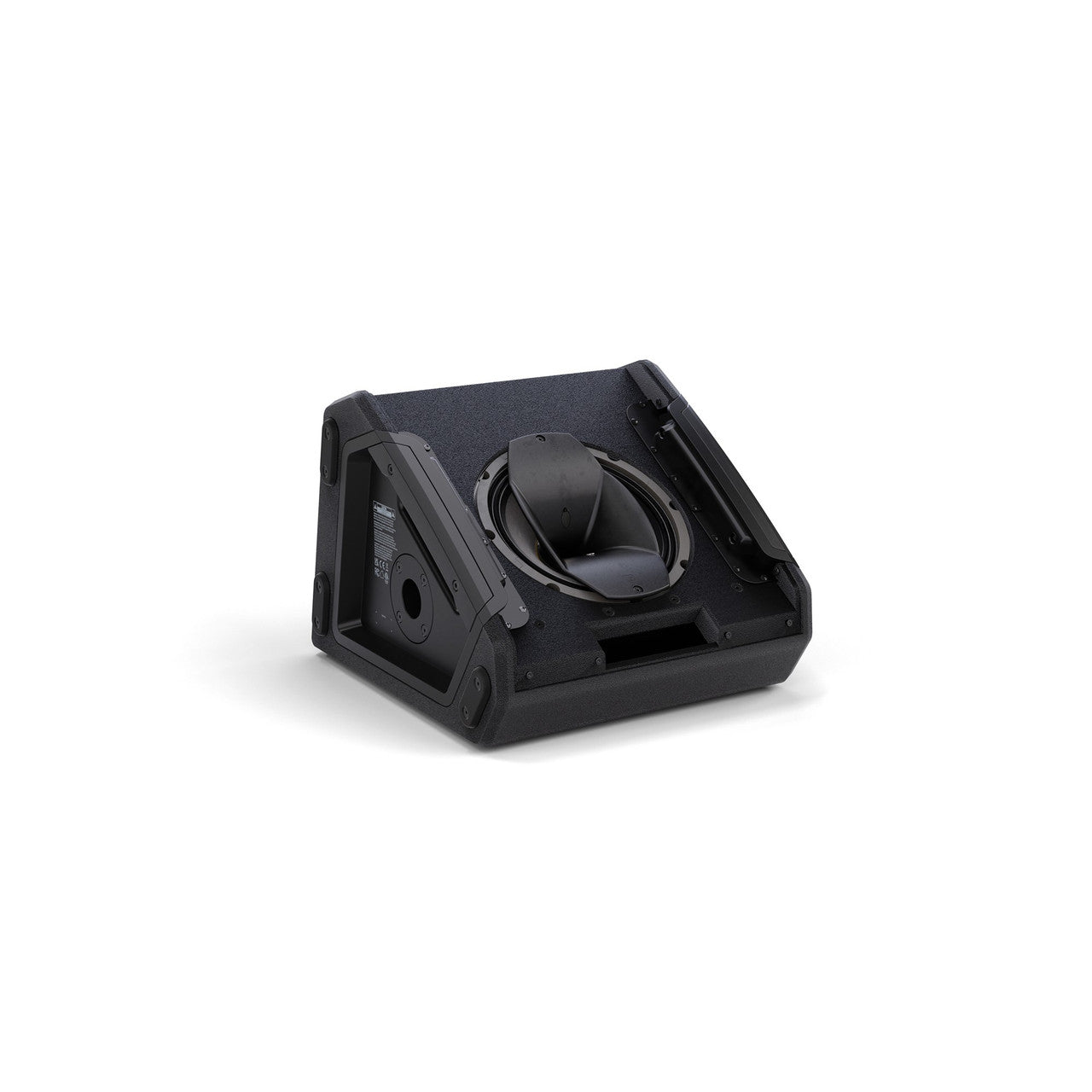

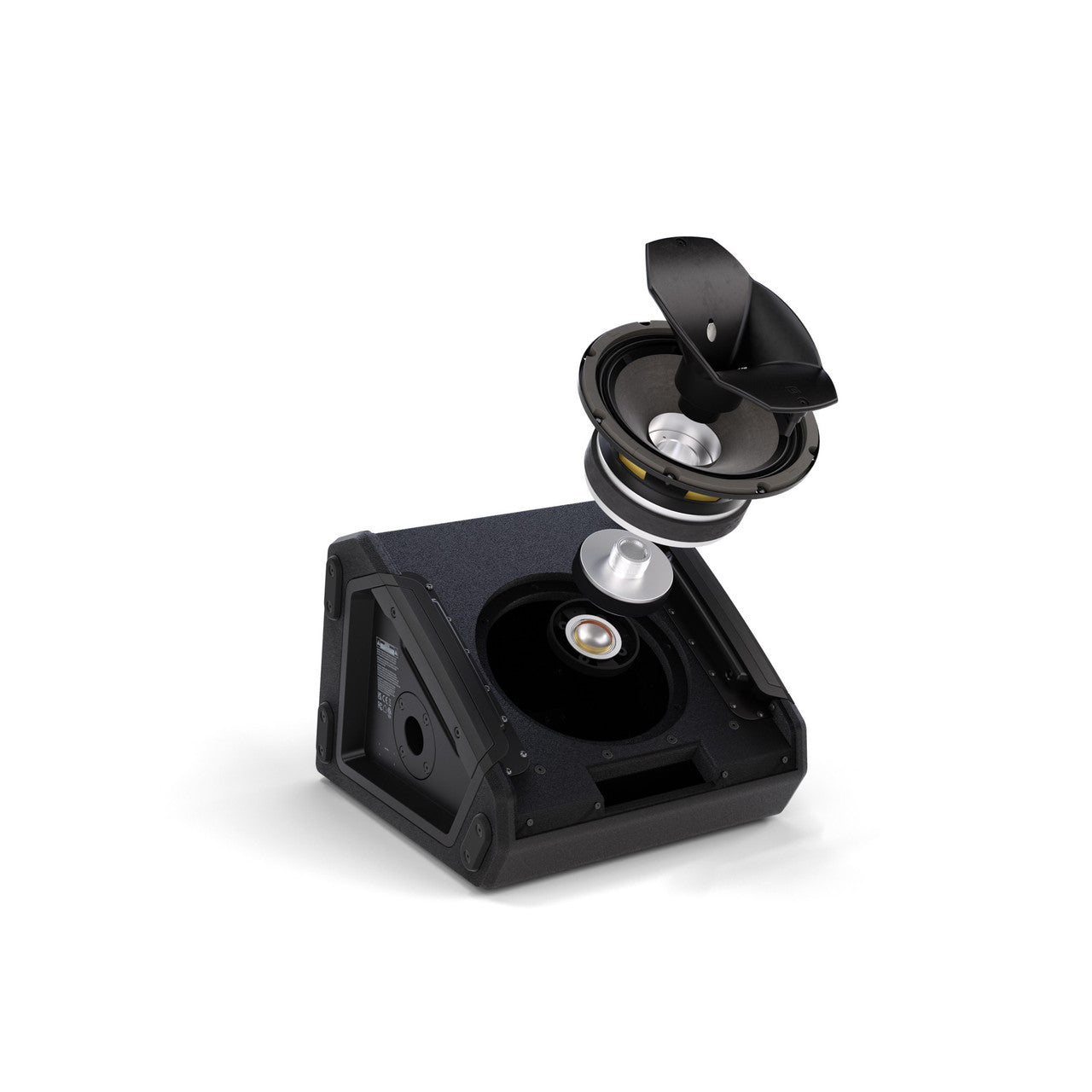

Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver

8" woofer with 2.5" voice coil

Optimised, practical radiation pattern due to 50° x 90° CD horn

DynX® DSP (Gen.2) for distortion-free sound even at maximum volume

3-band EQ, Notch filter, 4 application presets and delay function

PowerCON compatible loop-through professional power connection

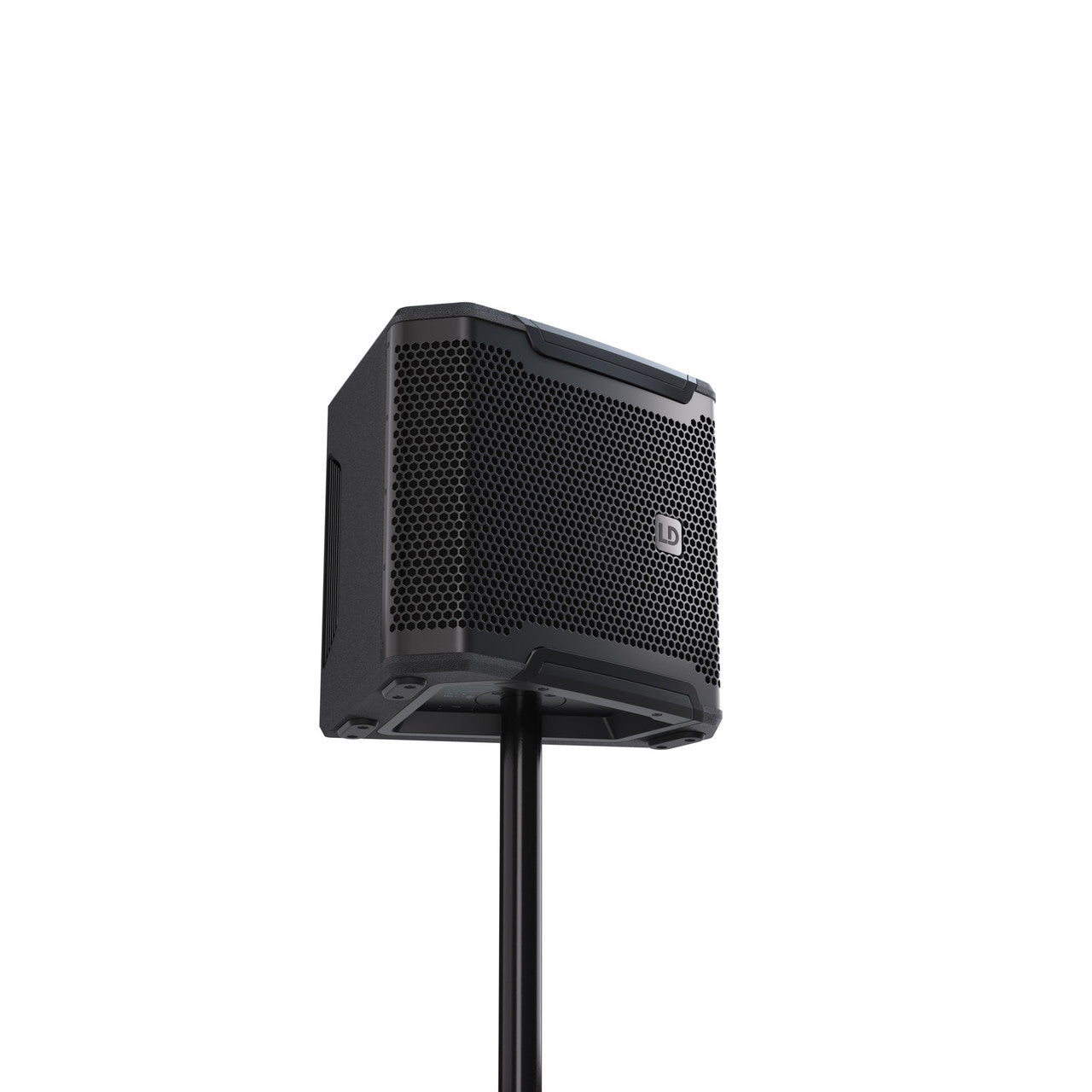

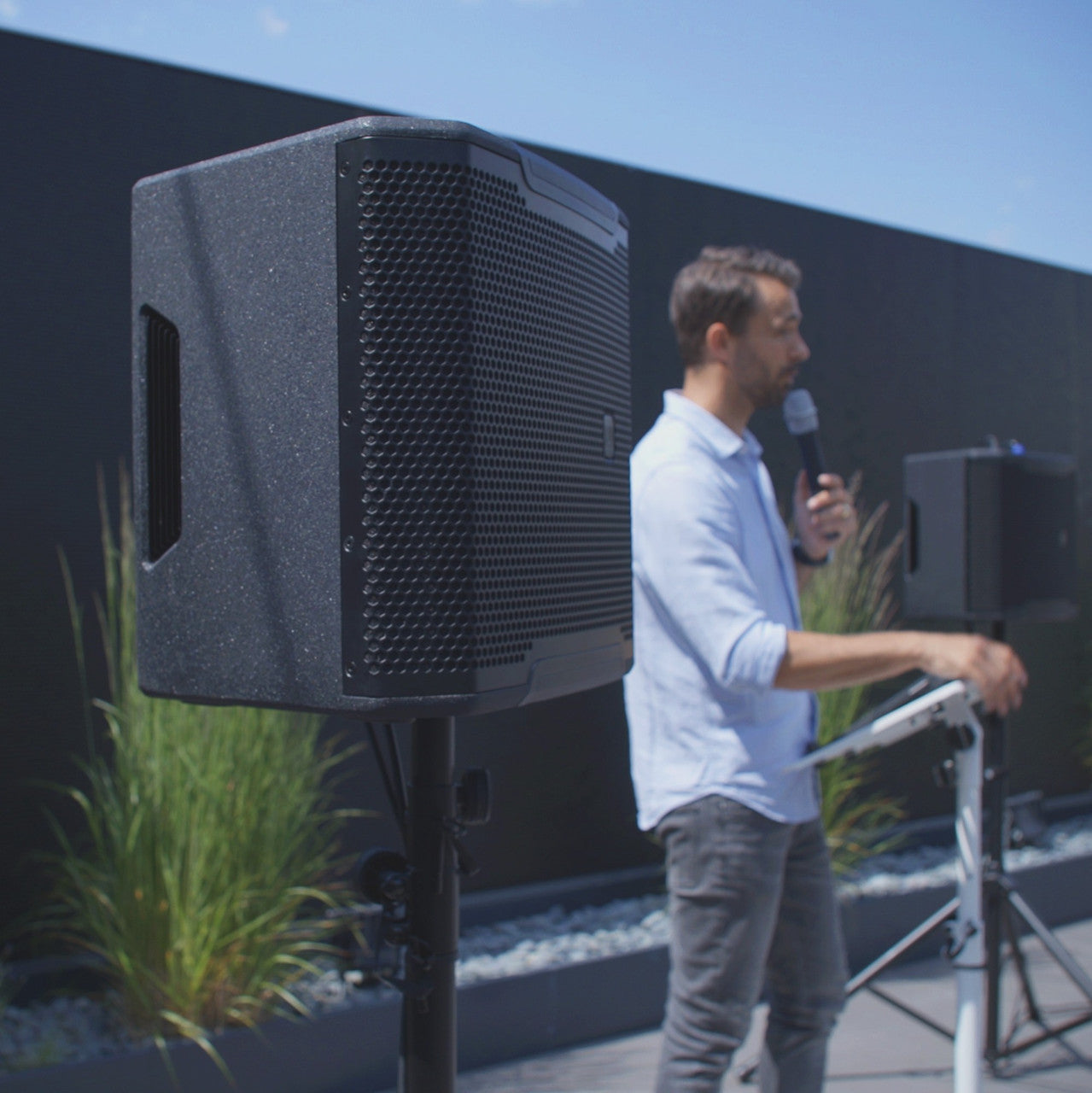

35 mm speaker stand flange for FOH applications

Durable Polyurea coating and heavy-duty front grille

POWERFUL DIGITAL CONTROLLER

DYNX DSP (GEN. 2)

The latest generation of LD Systems’ proprietary DynX DSP guarantees a dynamic, high-resolution sound image across the entire frequency response.

Image Description

4 SOUND PRESETS & 3-BAND EQ

The four intuitively operated sound presets and the 3-band EQ enable quick, user-friendly sound adjustment

Image Description

TUNABLE NOTCH FILTER

With the tunable notch filter, feedback frequencies can be quickly eliminated.

Image Description

DELAY LINE FUNCTION

The delay line function allows you to compensate for distances of up to 10 m / 33 ft. This is very useful when operating multiple loudspeakers in FOH mode, for example at a town festival.

POWER AMPLIFIER

The highly effi cient Class D power amp delivers 300 watts RMS. The peak power of 1200 watts, which can be called up at short notice, guarantees a dynamic, assertive sound image.

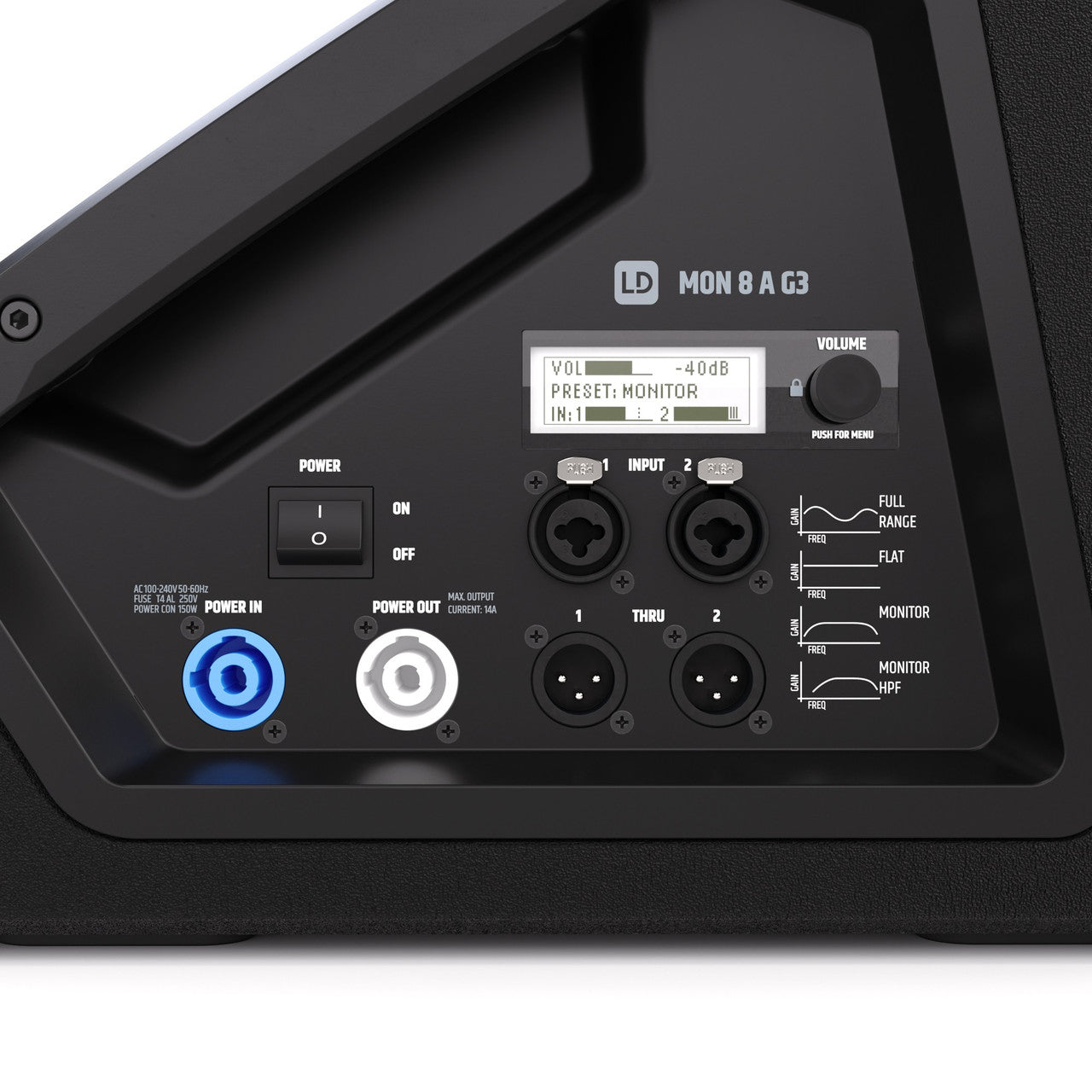

PROFESSIONAL
CONNECTORS

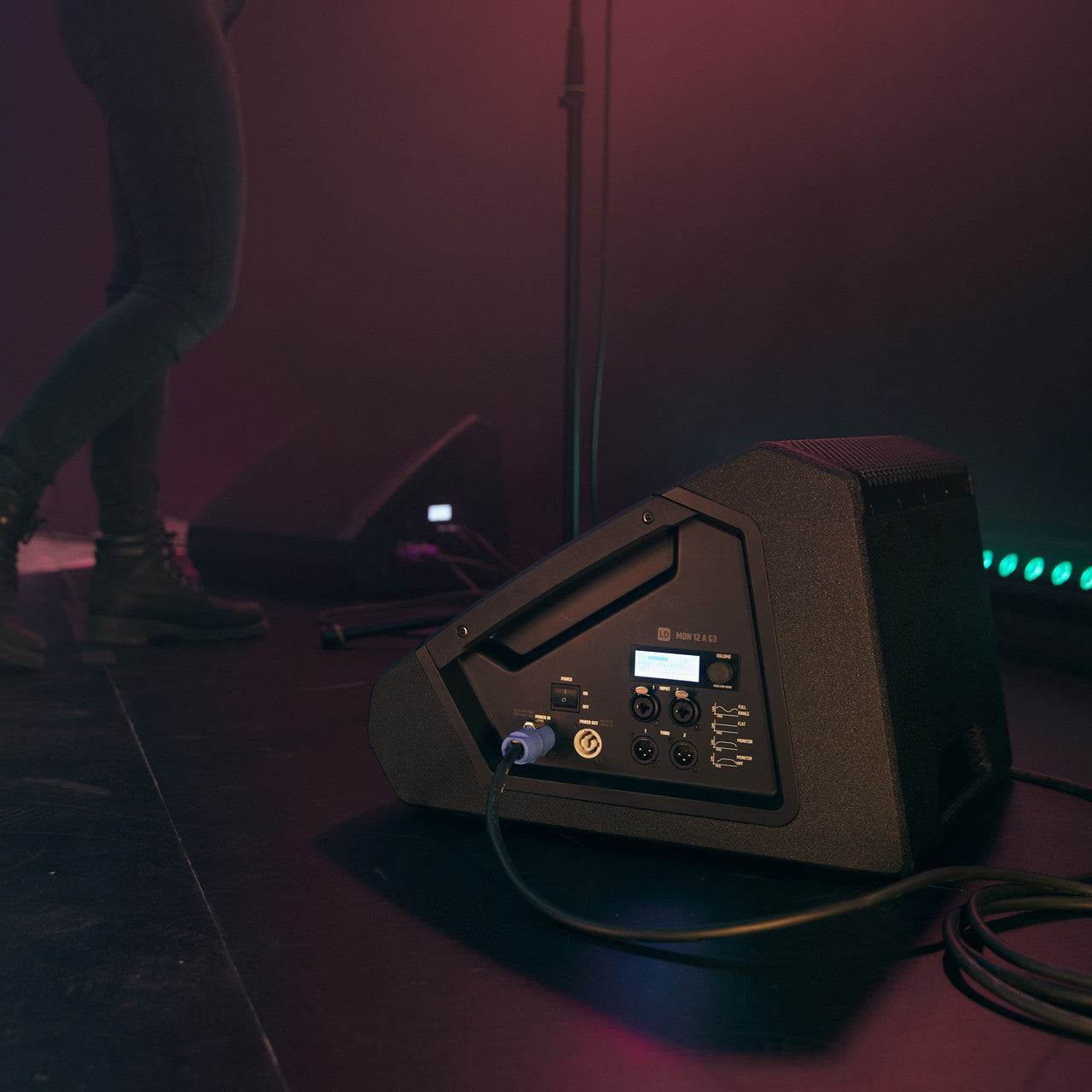

Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.

Your Image

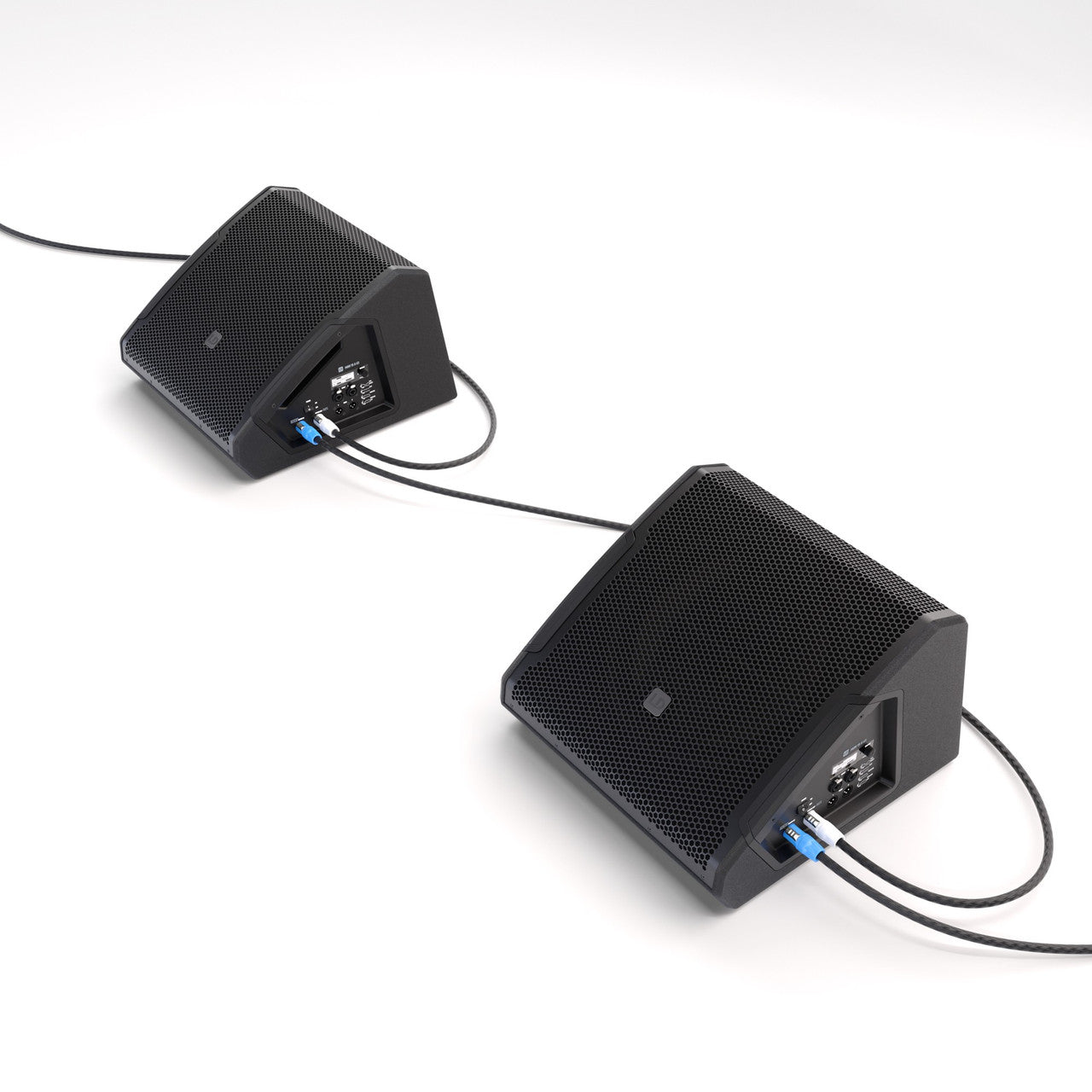

EASY DAISY CHAINING

The next monitor can be supplied with power via a second PowerCon compatible connection. Thanks to the two XLR outputs, you can also daisy chain the audio signal to a neighbouring stage monitor.



ROBUST CONSTRUCTION AND COATING



Image Description

HEAVY-DUTY BIRCH PLYWOOD

The enclosures are made of heavy-duty 15 mm birch plywood and coated with particularly resistant polyurea. Thus, they reliably withstand many years of hard use „on the road“.

Image Description

STEEL FRONT GRILLE

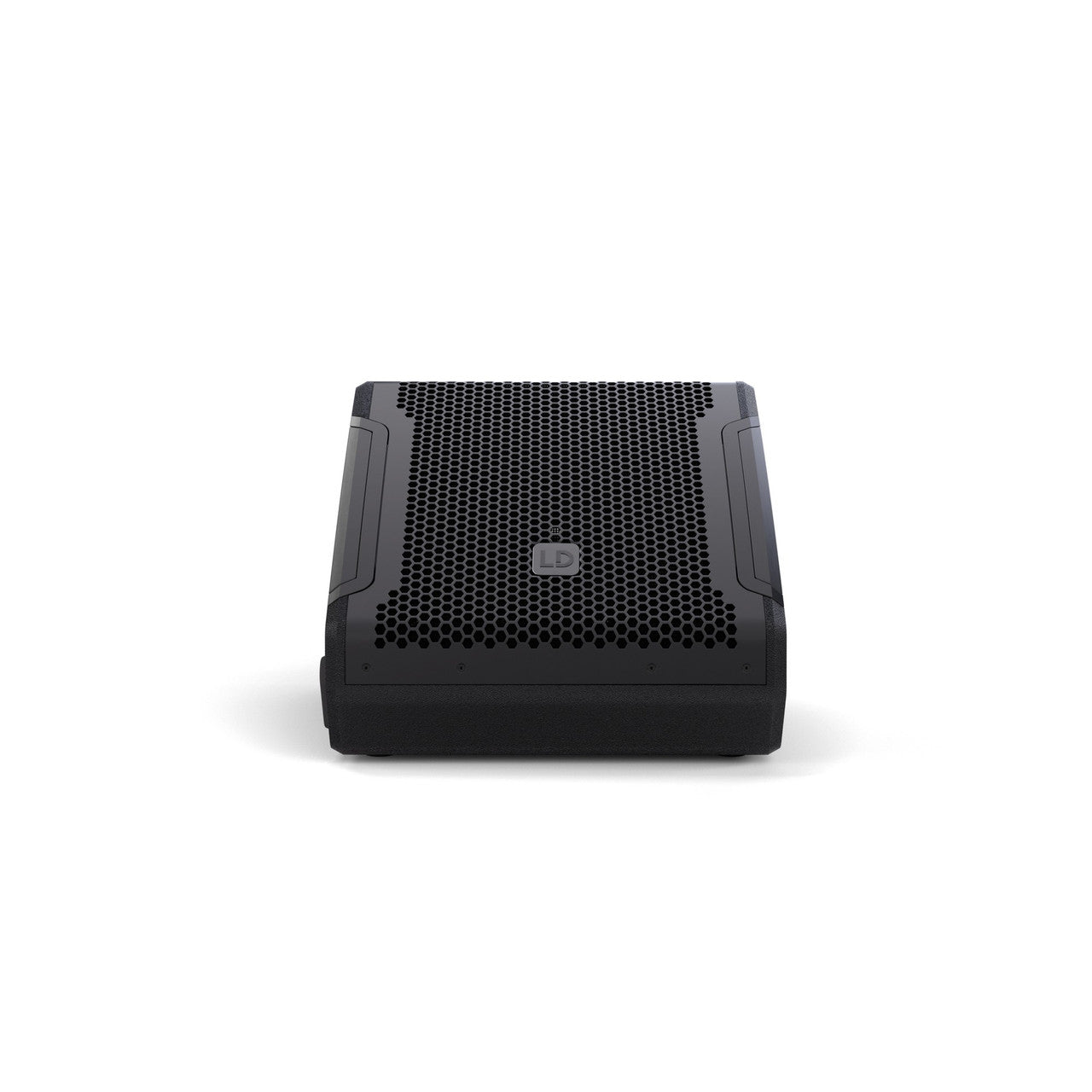

The extra-strong, torsion-resistant steel grilles effectively protect the speakers.

Image Description

TWO DIE-CAST ALUMINIUM HANDLES

The two cast aluminium handles, homogeneously integrated into the overall appearance, enable the best possible handling on stage.

Image Description

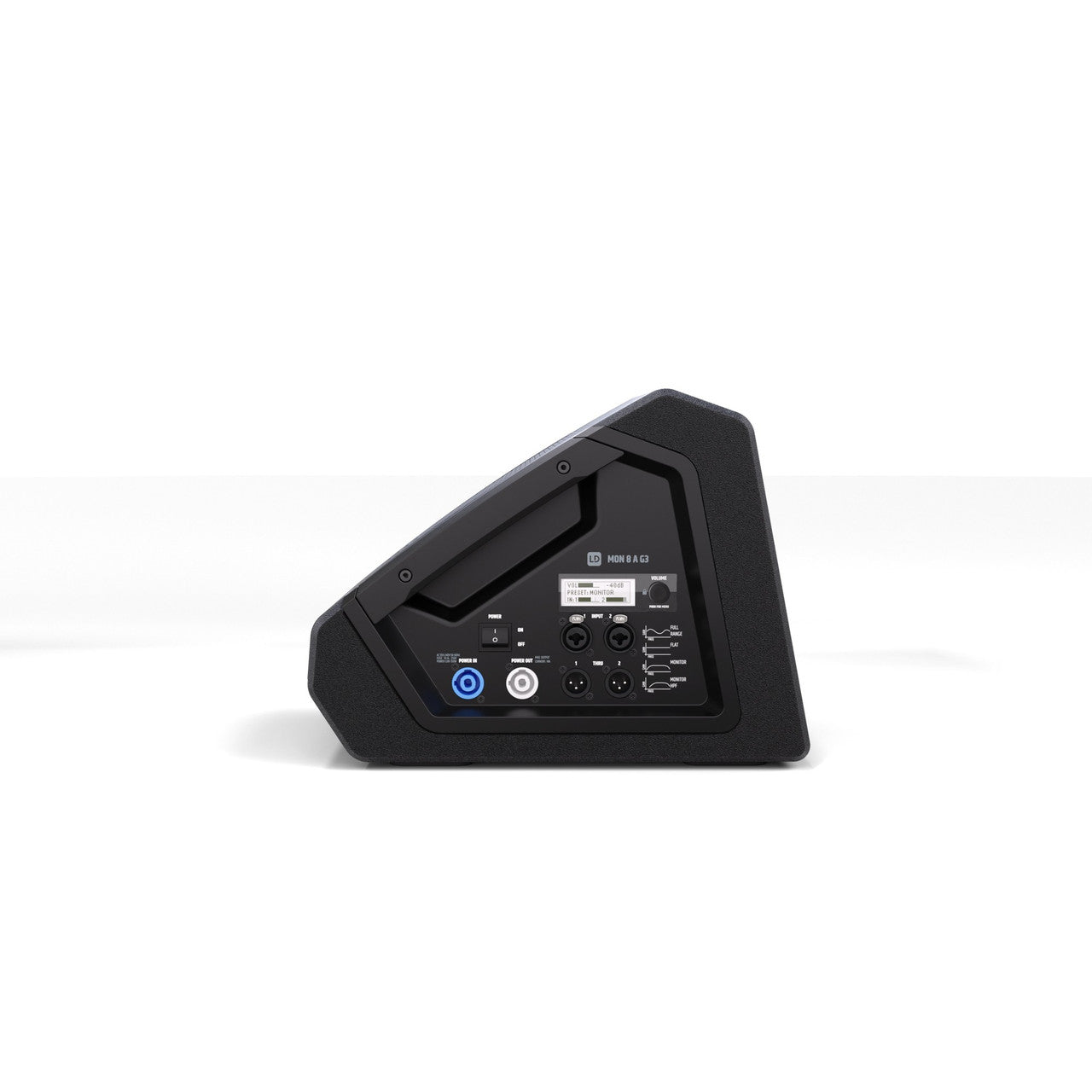

RECESSED CONNECTIONS

The connections and controllers are recessed in steel trays and are thus optimally protected against damage.

Image Description

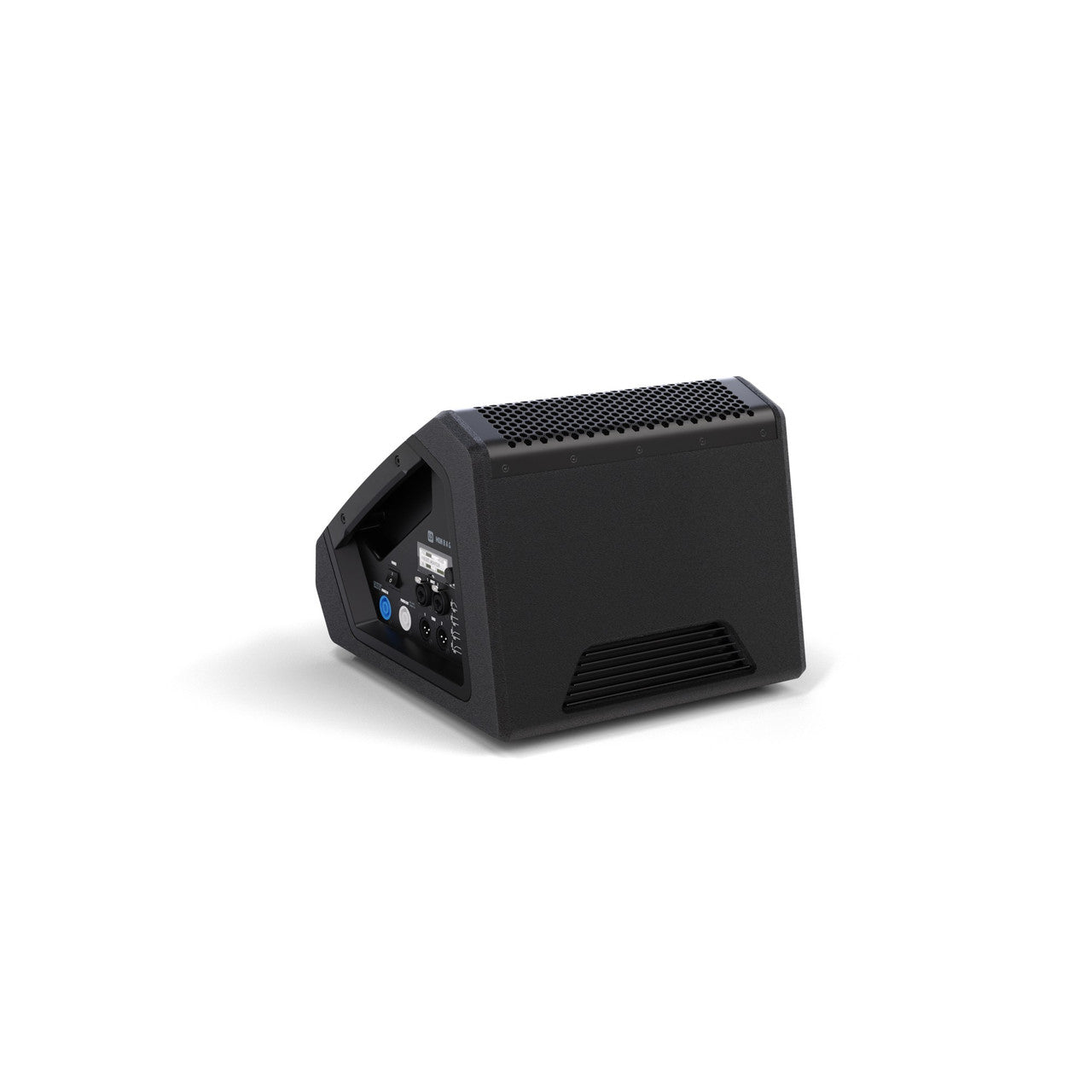

NOISELESS HEAT SINK

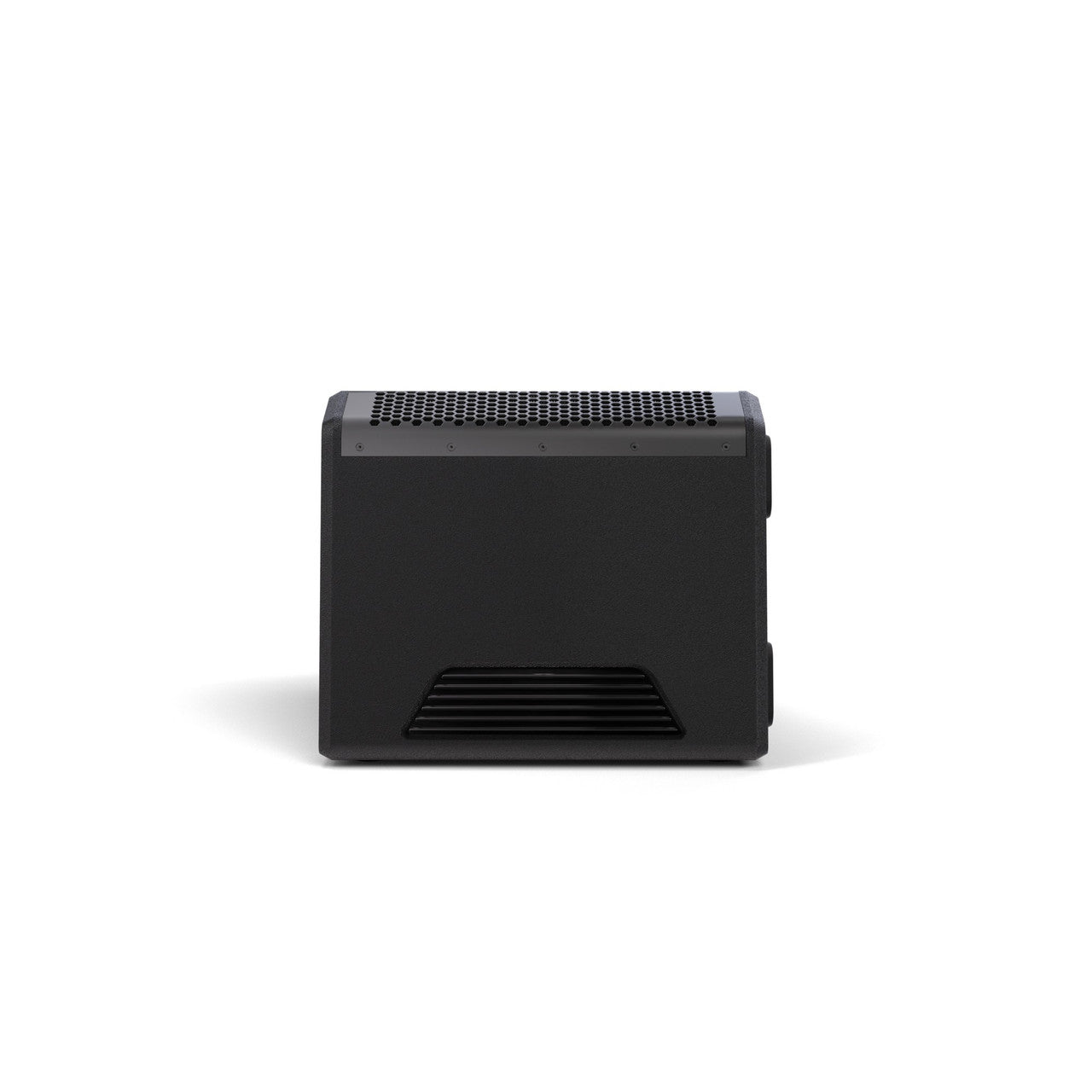

An elegantly designed heat sink on the back of the monitor provides fanless and thus noiseless cooling of the power electronics





HIGH-QUALITY PRODUCT DESIGN





HIGH-QUALITY APPEARANCE

The MON G3 stage monitors combine sophisticated functionality and professional aesthetics to create an exceptionally high-quality appearance.

SMALL FOOTPRINT

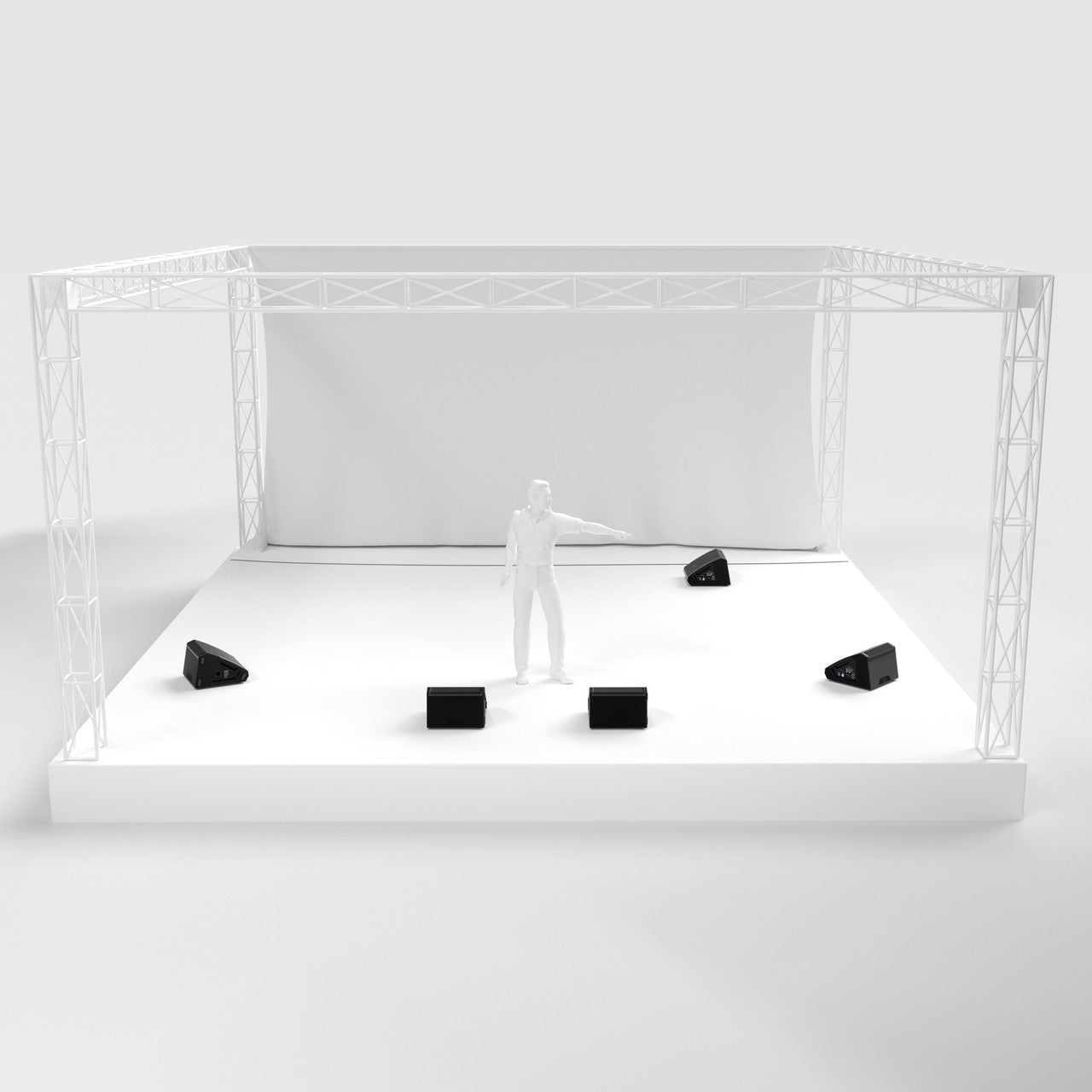

The low silhouette and the compact dimensions ensure best integrability even on small stages.

DISCREET BRAND LOGO

Details desired by our users, such as the rotatable, discreet, and understated brand logo, have also been considered.


Description

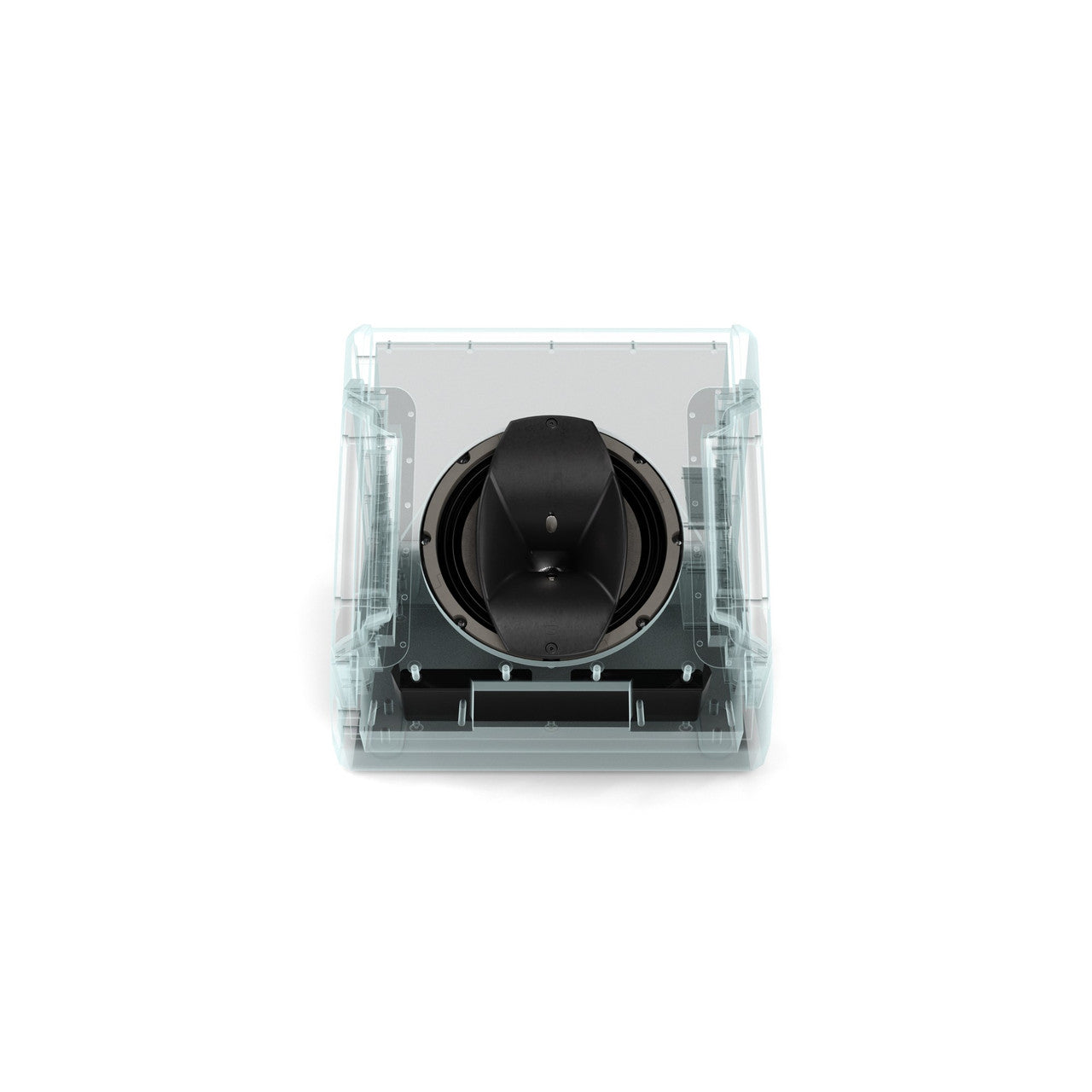

The MON 8 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

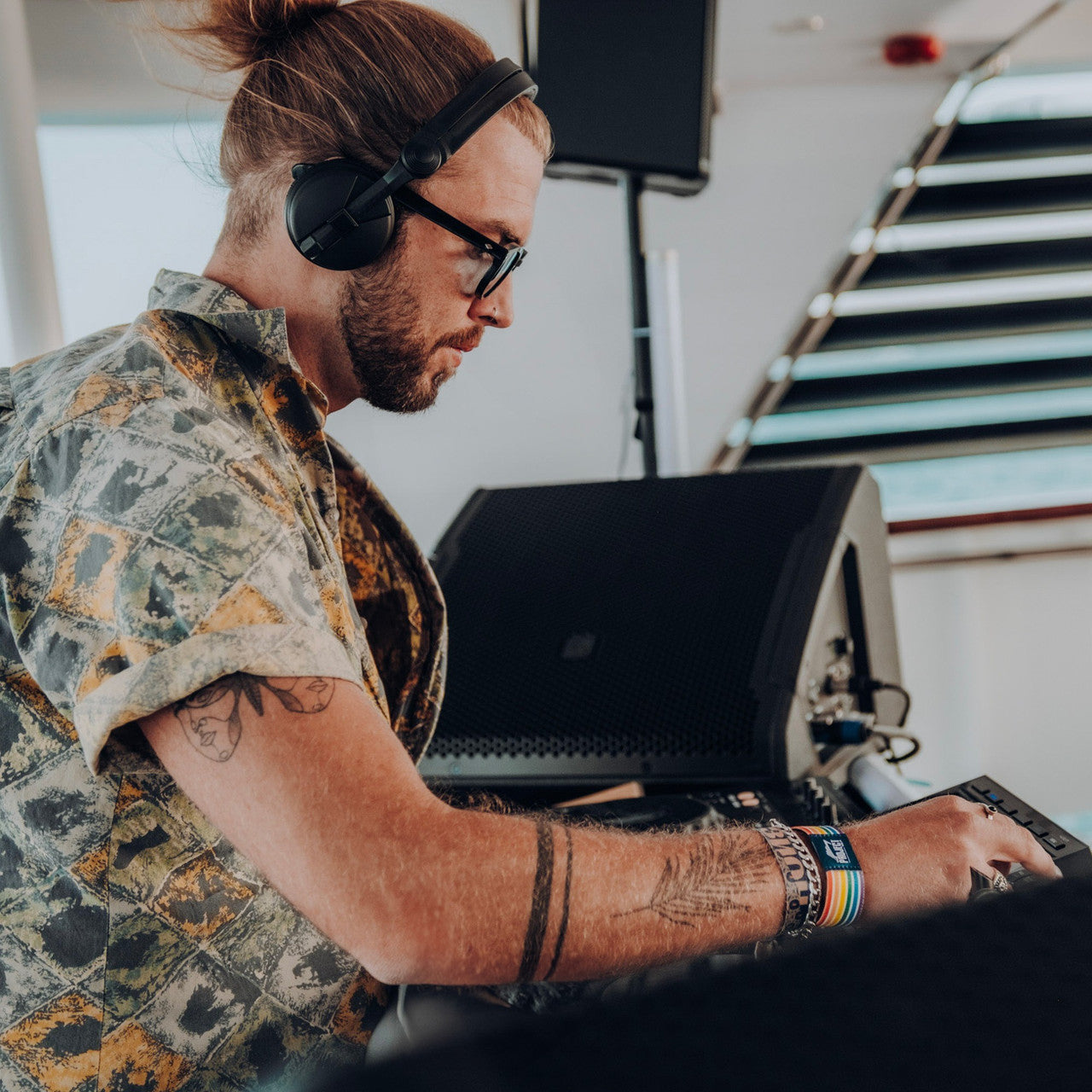

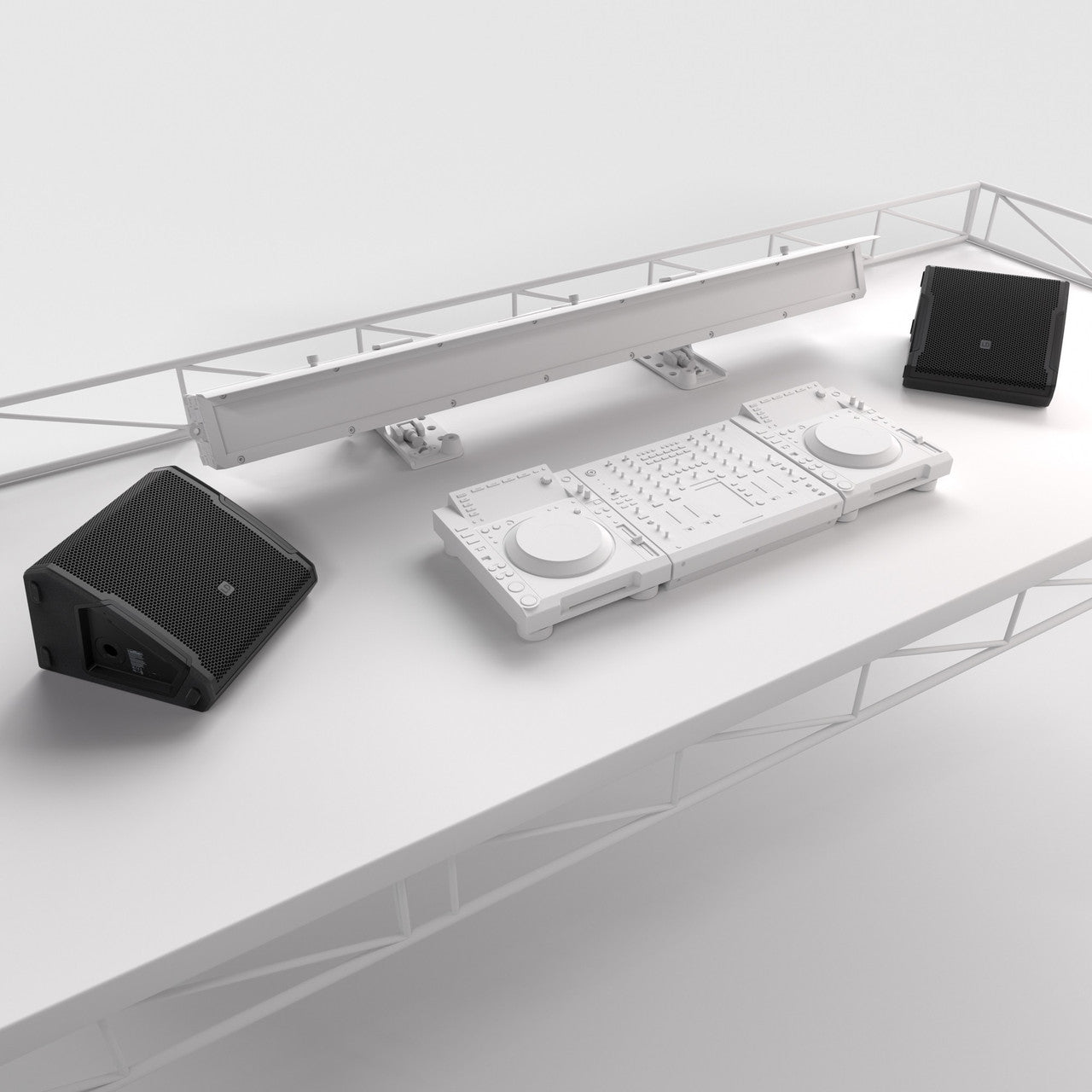

As the smallest member of the new stage monitor family, the MON 8 A G3 is particularly inconspicuous and flexible in use: as a stage monitor, in a DJ setup or on a speaker stand as a FOH speaker, as a satellite in 2.1 systems or as a delay line speaker. At the same time, the MON 8 A G3 offers a frequency response of up to 59 Hz, which is unusually low for its size, and thus full-range sound.

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Specifications
General
Product type Stage monitors
Type Powered
Color Black
System output (RMS) 300 W
System output (Peak) 1200 W
Max. SPL Average (Sine burst) 116 dB ( 100Hz - 12 kHz, fullspace @1m, 10% THD )
Max. SPL Peak (Sine burst) 121 dB ( fullspace @1m, 10% THD )
Frequency response (-3 dB) 68 Hz - 18000 Hz
Frequency response (-10 dB) 59 Hz - 20000 Hz
Crossover frequency 2500 Hz
Monitor angle 33°
Dispersion (H x V) 50° x 90°
Width 340 mm
Depth 368 mm
Height 278 mm
Features 3-band EQ (High, Mid, Low), 4 Application presets, Delay line, Notch filter
Weight 13,2 kg
Low/mid woofer
Low/mid Woofer dimensions 8 "
Woofer dimensions (mm) 203.2 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer type Coaxial loudspeaker
Woofer voice coil 2.5 "
Woofer voice coil (mm) 65 mm
Cabinet construction Bass Reflex
Cabinet material 15 mm Birch Plywood, 15 mm MDF
HF
Horn CD Horn
Tweeter dimensions 1 "
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Ferrite
Tweeter brand Custom-made
Tweeter voice coil 1.75 "
Tweeter voice coil (mm) 44.45 mm
Amplifier module (integrated)
Amplifier Class D
Protection circuits Multiband limiter, over voltage, over-current, thermal overload
Operating Temperature 0 - 40 °C
Humidity Range < 80 % ( non-condensing )
Fuse T4AL 250 V
Controls On / off switch, Rotary/push encoder
Indicators LC display
Operating voltage SMPS
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 150 W
Power in / out PowerCON compatible
Line inputs 2
Line input connectors 6.3 mm jack, XLR - combo
Line thru 2
Line through connector XLR
