LD Maui 28 G3 Portable line array speaker system with Subwoofer

LD Systems

$1,599.99
(No reviews yet) Write a Review
SKU:
Maui28G3
UPC:
4049521713019

OUT OF STOCK, email us for and ETA or to get this on order for you, if the item is discontinued we can suggest a replacement.

2060 W Peak-power and 127 dB max. SPL

Powerful and deep bass reproduction with 12" subwoofer

Balanced mids thanks to 12 x 3.5" full-range speakers

Precise and silky highs with 2 x 1" high-frequency drivers

Cardioid column for controlled low-mid and midrange sound dispersion

BEM optimised HF waveguide and midrange phase plugs for homogeneous dispersion

Optimised bass-reflex design improves bass response and reduces air flow noise

Can be combined with an additional MAUI® 28 G3 subwoofer for increased low end or for cardioid subwoofer setups

New Dynx® DSP (Gen.2) for distortion-free sound even at maximum volume

AAC coding for HD Bluetooth® 5.0 streaming

Automatic setup detection for quick and easy operation

Fast and simple assembly without stands or cables

Rugged birch plywood subwoofer housing with durable polyurea-coating

Lightweight, powder-coated aluminium column housing
Description

Compact, powerful and easy to use - a column PA remains the perfect companion for DJs and smaller bands. The LD Systems MAUI series represents this all-in-one concept in every detail and offers an unrivalled PA package in terms of sound, design, technology and handling. Set it up, plug it in, and you're all set!

The MAUI 28 G3 delivers a huge, powerful and precise sound featuring 1,030 W RMS power (2,060 W peak), suitable for all applications: as a main PA for concerts, a sound system for mobile DJs or a public address system at weddings, corporate events and many more.

With its sleek and elegant design, the MAUI 28 G3 looks very appealing. The two aluminium column elements sit at the front edge of the subwoofer, further enhancing the seamless visual impression. The columns are equipped with 12 x 3.5'' midrange drivers and 2 x 1'' tweeters, providing an even sound distribution with constant horizontal dispersion in combination with the innovative phase plug design. In addition, the BEM-optimised waveguide ahead of the tweeters carries the high frequencies even to the very rear audience areas.

The LD Systems engineers also took great care of the crossover filter between midrange and tweeter speakers. The aim was to reduce harmonic distortion and interference to make the sound even more transparent, vibrant and powerful. The result speaks for itself: a highly precise reproduction of vocals and instruments across the entire 120° x 30° dispersion field. The columns of the MAUI 28 G3 are designed as cardioid speakers. This allows for controlled low-mids at the front and up to 18 dB of attenuation at the rear, resulting in a clean stage sound.

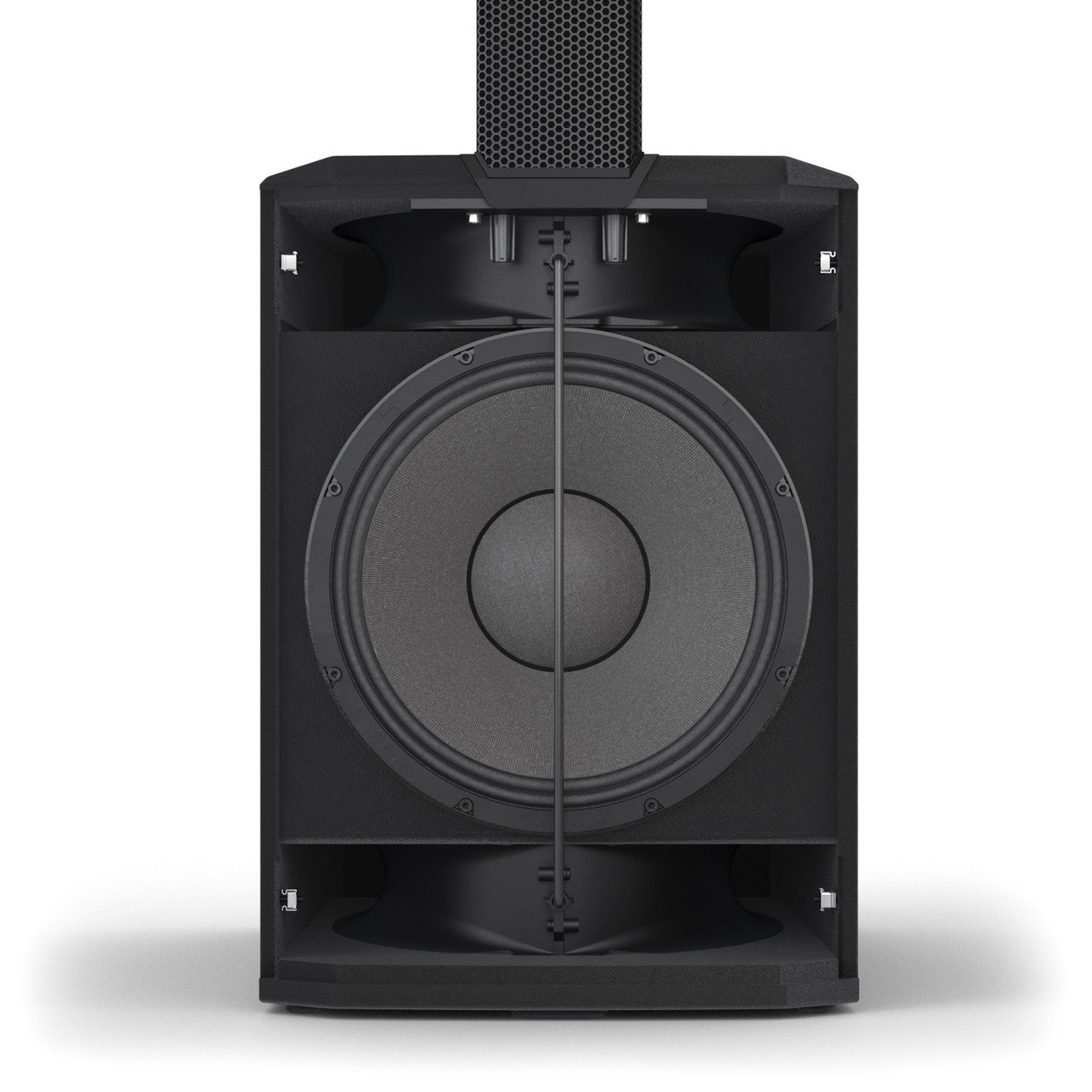

Equipped with a single 12'' woofer and four bass reflex ports, the MAUI 28 G3 subwoofer delivers a clear, tight and punchy low end down to 37 Hz. By using a second subwoofer, the bass response can also be increased of up to 6 dB and it can also be driven in cardioid configuration at the push of a button (cardioid preset). In addition, the ultra-durable polyurea coating of the subwoofer easily withstands even the toughest demands on the road.

The MAUI 28 G3 is a real sound machine, yet also convinces with its sophisticated features in the day-to-day life of DJs, musicians and technicians. Thanks to Bluetooth 5.0 and AAC coding, the column PA becomes even more versatile. Transport is as easy as usual, while the enhanced, hidden multi-pin connections between the elements provide increased stability during assembly. There's nothing that can knock the MAUI off its feet so easily...

Specifications
General
Product type PA Complete Systems
Type Powered
Color Black
Max. SPL (Peak) 127 dB
Frequency response (-10dB) 37 Hz - 20000 Hz
Dispersion (H x V) 120° x 30 °
Total Height 2052 mm
Weight 35,4 kg
Features Bluetooth Audio Streaming, Cardioid column, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
Subwoofer
Woofer dimensions 12 "
Woofer dimensions (mm) 305 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 3 "
Woofer voice coil (mm) 76.2 mm
Cabinet construction Bass Reflex
Housing material 15 mm Birch Plywood
Cabinet surface Polyurea
Dimensions Subwoofer (W x H x D) 370 x 527 x 472 mm
Subwoofer weight 22.8 kg
Mid/Hi System
Midrange dimensions 12 x 3,5 "
Midrange dimensions (mm) 12 x 89 mm
Midrange magnet Ferrite
Midrange brand Custom-made
Midrange voice coil 0.75 "
Midrange voice coil 19 mm
Tweeter dimensions 2 x 1 "
Tweeter dimensions (mm) 2 x 25.4 mm
Tweeter magnet Neodymium
Tweeter brand Custom-made
Tweeter voice coil 1 "
Tweeter voice coil (mm) 25.4 mm
Wave Guide CD Waveguide
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Cabinet construction mid/high Passive Cardioid
Mid/Hi system cabinet material Aluminium
Mid/Hi system cabinet surface Powder-coated
Mid/Hi system width 103 mm
Mid/Hi system height 1540 mm
Mid/Hi system depth 135 mm
Mid/Hi system weight 12.6 kg
Amplifier module (integrated in subwoofer)
Amplifier Class D
System output (RMS) 1030 W
System output (Peak) 2060 W
Protection circuits DC protection, Multiband limiter, short circuit, thermal protection
Cooling Convection
Controls Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
Indicators Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
Mains connector IEC power cable (included)
Operating voltage 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
Fuse T 5AL / 250 V
Power consumption 400 W
Ambient temperature (operating) 0 - 40 °C
Relative Humidity < 80% (non-condensing)
Line Inputs 2
Line Input Connectors Combo XLR / TRS
Line Outputs 1 x Sub OUT, 2 x THRU
Line Output Connectors XLR male
Number of speaker outputs 1
Loudspeaker Output Connectors Custom-made multipin
Bluetooth Standard A2DP
Bluetooth Audio Decoder AAC, SBC
DSP characteristics
Bit depth AD/DA converter 24 bit
Sampling frequency 48 kHz
