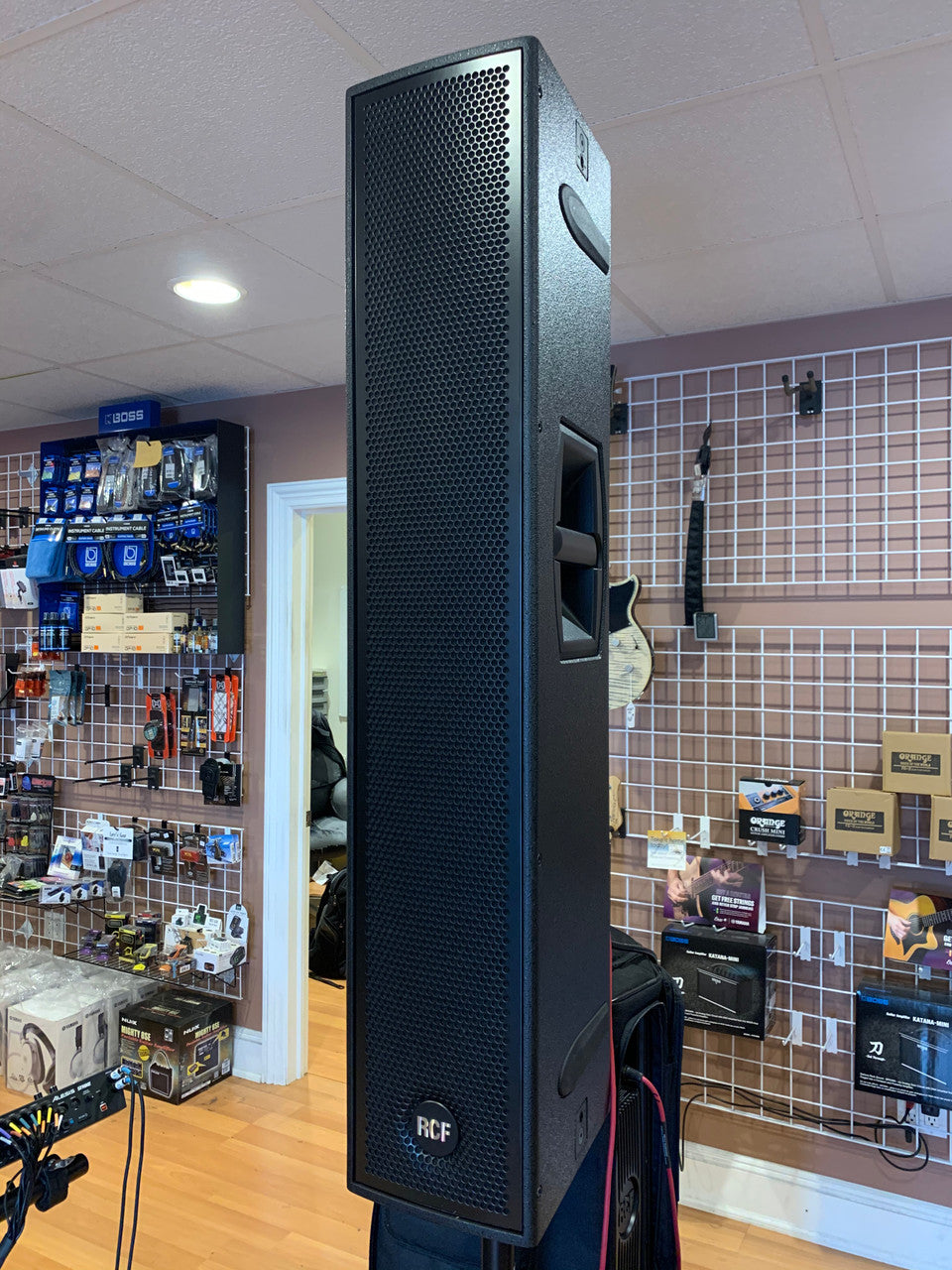

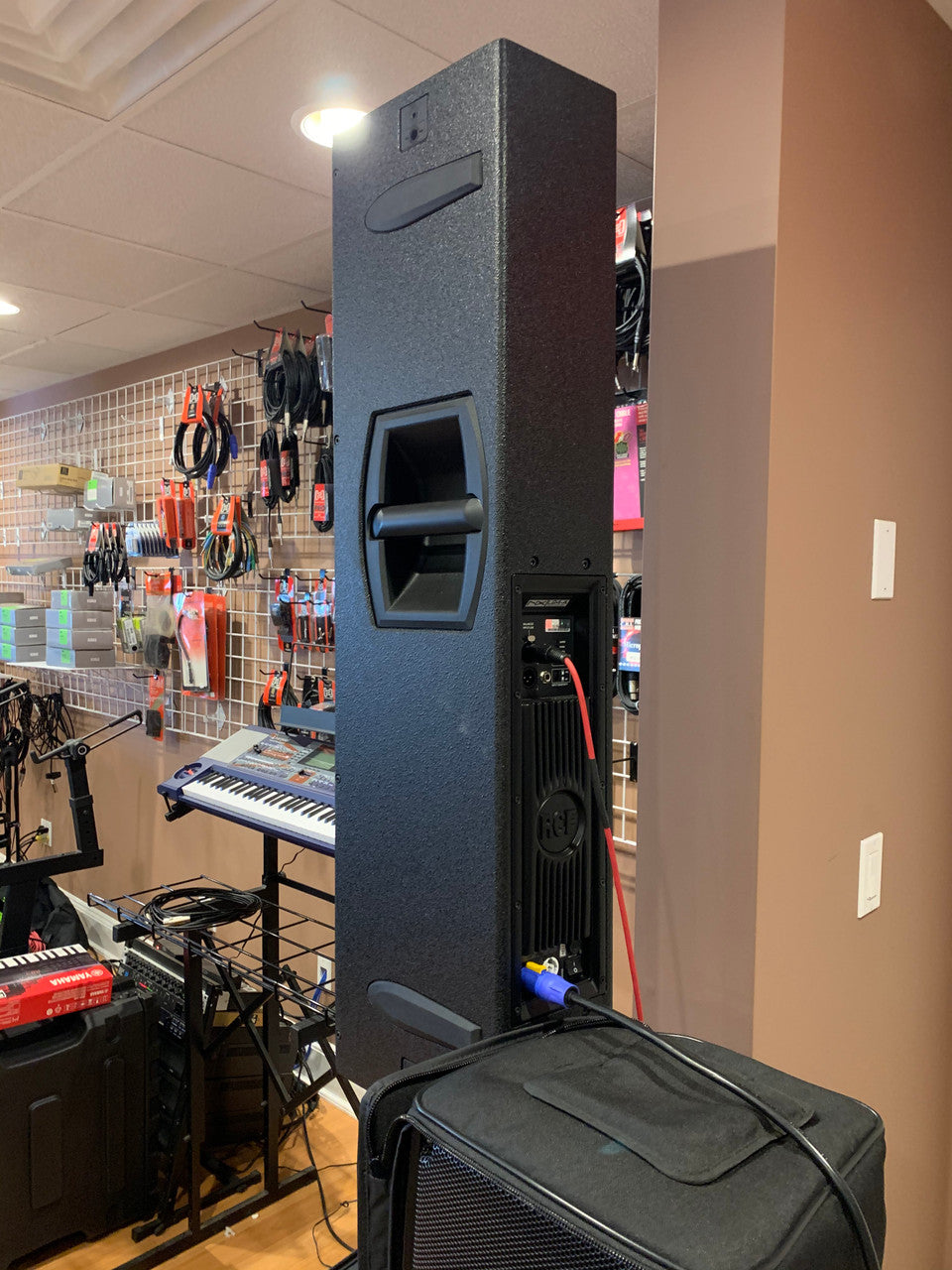

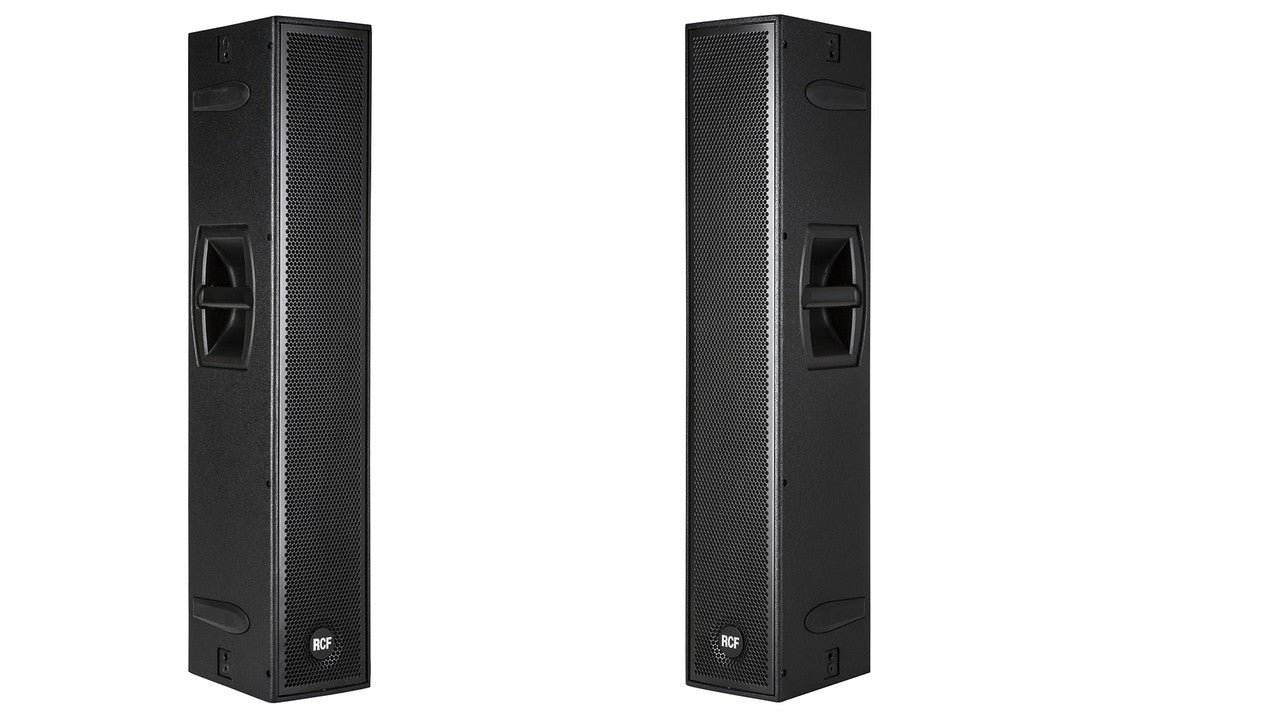

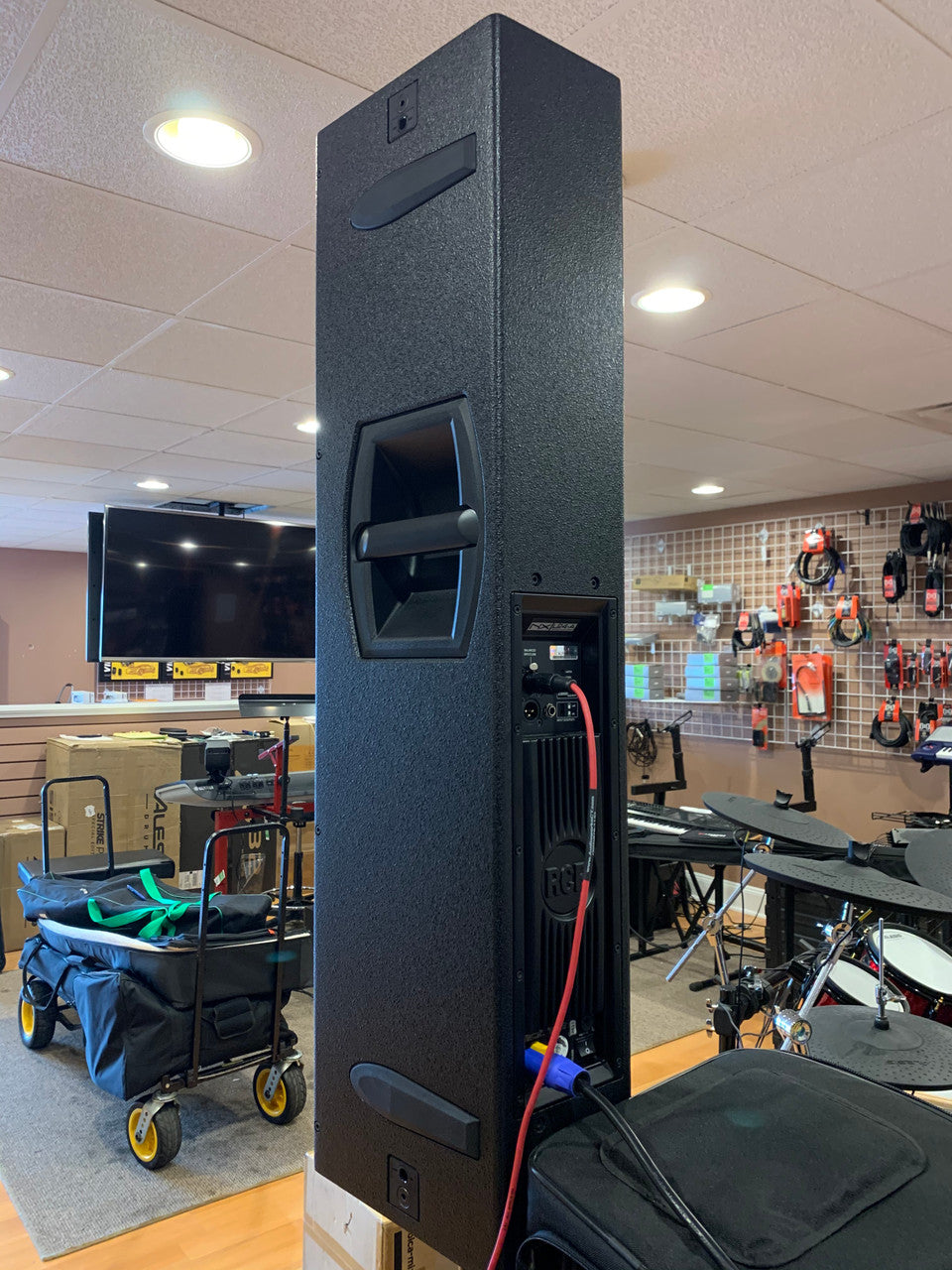

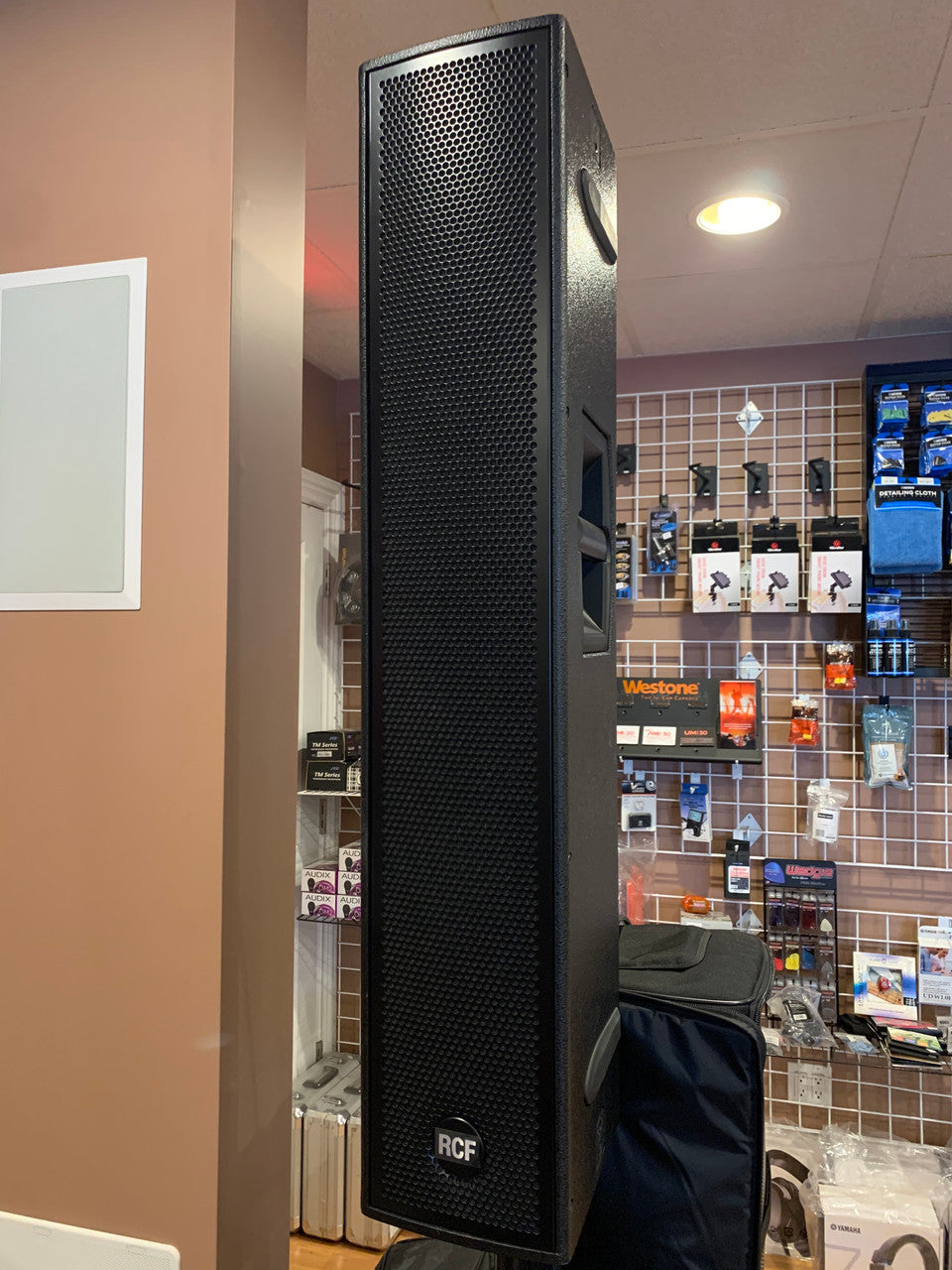

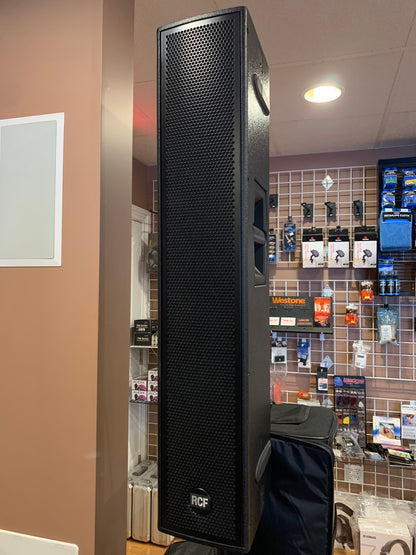

2 RCF NXL 24-A Active speakers 4 6" drivers Two-Way Array with covers
2 RCF NXL 24-A Active speakers 4 6" drivers Two-Way Array with covers
Regular price
$2,799.99 USD
Regular price
$2,599.99 USD
Sale price
$2,799.99 USD
NXL 24-A
ACTIVE TWO-WAY ARRAY
-
1400 WATT
-
4 X 6" WOOFERS
-
2.5" VOICE COIL RCF PRECISION C. DRIVER ON WAVEGUIDE
-
65 HZ 20 KHZ FREQUENCY RESPONSE
- 1400 Watt
- 131 dB max SPL
- 65 Hz 20 kHz frequency response
- 4 x 6" Woofers
- 2.5" voice coil RCF Precision C. Driver on waveguide
- 100° x 30° slightly tilted pattern control
- DSP controlled Input section with single or dual eq. preset
- Pole mountable, Stackable, Flyable
- Baltic Birch Plywood enclosure with internal structural metal bracings
The NXL 24-A is an active column speaker array system composed by 4 x 6” high power woofers and a 2.5” voice coil compression driver loaded from a waveguide on a 100° x 30° constant directivity horn. The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalisation, phase alignment, soft limiting and speaker protections. Equalisations are available to operate with a single column or in pairs.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz ÷ 20000 Hz
MAX SPL @ 1M:
131 dB
HORIZONTAL COVERAGE ANGLE:
100°
VERTICAL COVERAGE ANGLE:
30°
Transducers
COMPRESSION DRIVER:
1.4'', 2.5'' v.c
WOOFER:
4 x 6.0'', 1.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal
INPUT CONNECTORS:
XRL, Jack
OUTPUT CONNECTORS:
XLR
INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz
PROTECTIONS:
Thermal, RMS
LIMITER:
Soft Limiter
CONTROLS:
Volume, EQ Shape, MIc/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS
LOW FREQUENCIES:
1000 W Peak, 500 W RMS
COOLING:
Convection
CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood
HARDWARE:
4 x MB, 4 x quick lock
HANDLES:
2 side
POLE MOUNT/CAP:
Yes
GRILLE:
Steel
COLOR:
Black
Size
HEIGHT:
1056 mm / 41.57 inches
WIDTH:
201 mm / 7.91 inches
DEPTH:
274 mm / 10.79 inches
WEIGHT:
26.4 kg / 58.2 lbs
Shipping informations
PACKAGE HEIGHT:
316 mm / 12.44 inches
PACKAGE WIDTH:
1155 mm / 45.47 inches
PACKAGE DEPTH:
222 mm / 8.74 inches
PACKAGE WEIGHT:
29 kg / 63.93 lbs
