Product Overview

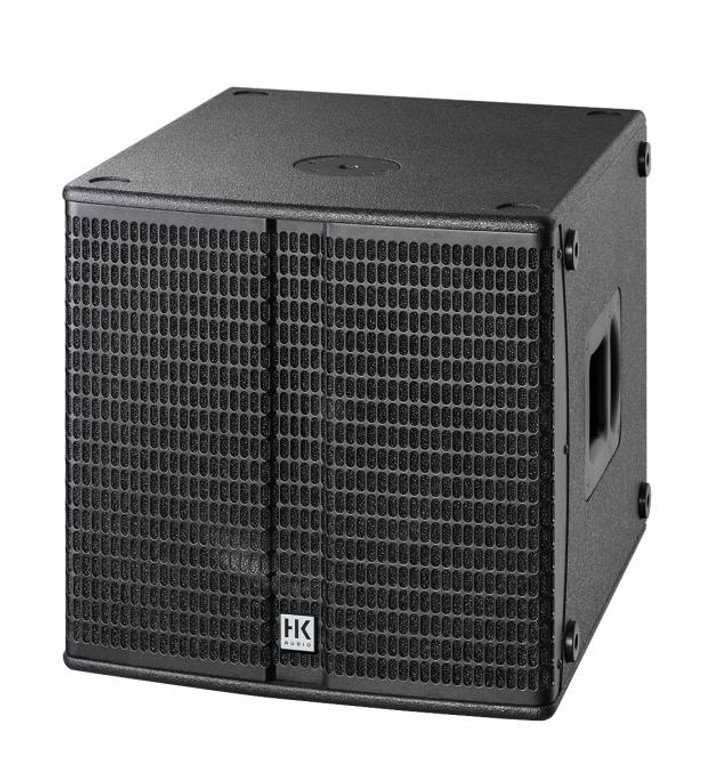

L SUB 1500 A
LINEAR SUB 1500 A – a 15” bass reflex subwoofer – is a diminutive miracle of power. A powerful punch, precise playback and an impressive low end (all the way to 45 Hz) make this powered sub the perfect add-on to mid/high units from the LINEAR 3 family when particularly dynamic and crisp bass response is required. What’s more, LINEAR SUB 1500 A can also be used in combination with mid/high units from the LINEAR 5 family, as a bass extension to the ELEMENTS EASY BASE, SMART BASE and LINE BASE systems, or as a sub extension to the active 2.1 LUCAS 2K15 system.
- Compact powered subwoofer
- 1200 watts
- 1 x 15" speaker
- 131 dB Max SPL Peak @ 10% THD (halfspace)
- Ideal add-on to mid/high units from the LINEAR 3 family
- Can also be used in combination with LINEAR 5 mid/high units, as a bass extension to the ELEMENTS EASY BASE, SMART BASE and LINE BASE systems, or as a bass add-on to the active 2.1 LUCAS 2K15 system
- Rugged wood enclosure
- Adjustable X-over frequency
- Integrated HK Audio MultiGrips
ModelL SUB 1500 A
Max SPL 129 dB half-space (@ 10% THD) Max SPL peak 131 dB half-space (@ 10% THD) Max SPL calculated 132 dB half-space Frequency response +/- 3 dB 49 Hz – X-Over Frequency response -10 dB 45 Hz – X-Over Power Rating 1200 W Amplifier Class D Active protection circuits Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter LF Speaker 1x 15" Cut-off Frequency active 100/120 Hz variable with 24 dB/oct. Connections 2x XLR Combo In bal., 2 x XLR Thru bal., 2x XLR-Mid/High Out Input Sensitivity +4 dBu @ Gain center-notched Pole mount 1x M20 (K&M) Handles 2x HK Audio MultiGrip Enclosure MDF 16 mm Grille 2 mm metal grille backed with black acoustic foam Finish Acrylic enamel, black Optional accessories Protective cover, Stereo Pole Add-On M20, tilt unit, 100 mm casters Dimensions (WxHxD) 48,5 x 48,5 x 59,5 cm Weight 29,8 kg / 65,7 lbs.
