LD Systems MON 15 A G3 15" powered coaxial stage monitor

LD Systems

(No reviews yet) Write a Review
$699.99
SKU:
LDMON15AG3
UPC:
4049521740930
Condition:
New
Adding to cart… The item has been added

Product Overview

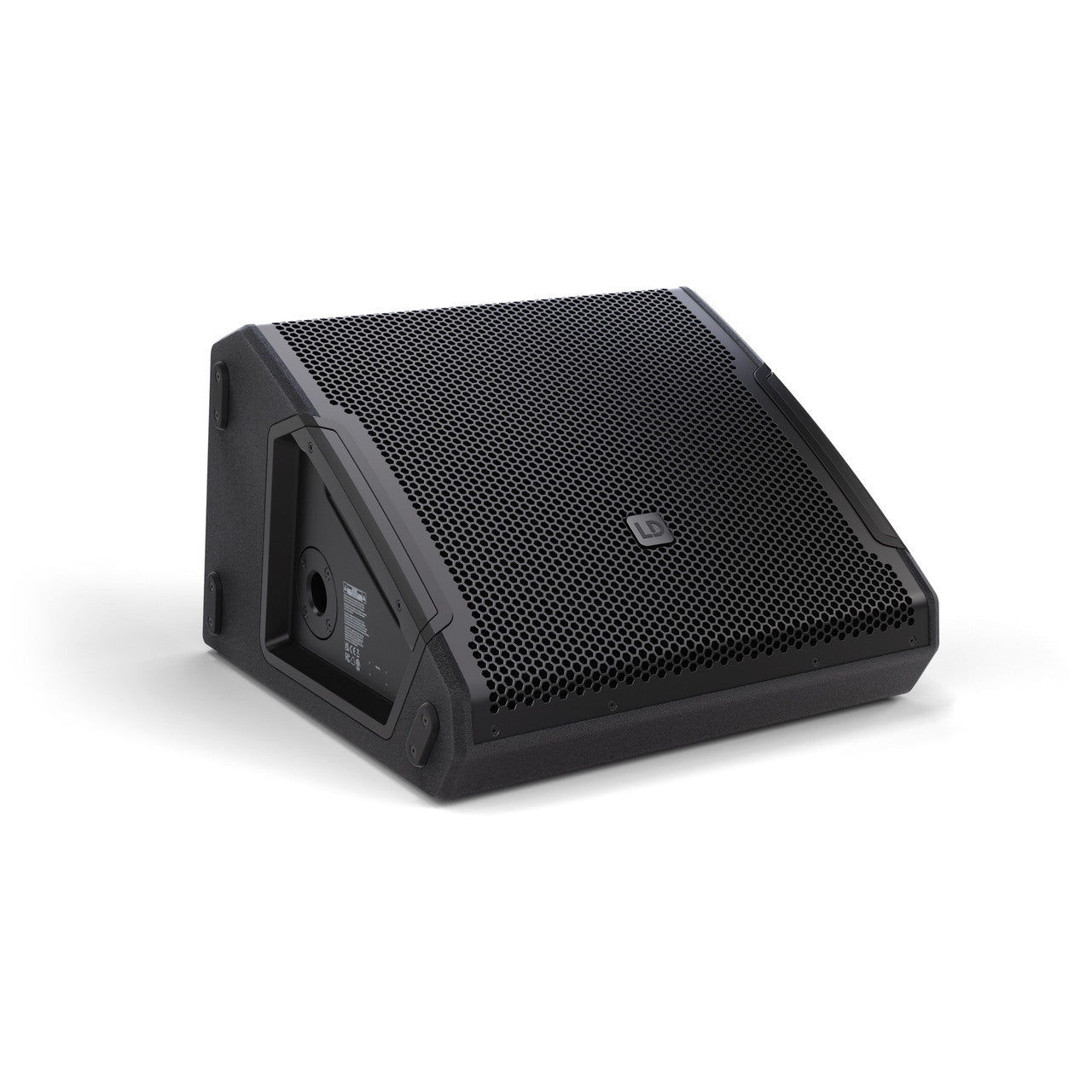

Compact high-performance stage monitor with top-of-the-range technologies

Class-D power amplifier with 300 W RMS/1200 W peak and 129 dB max. SPL

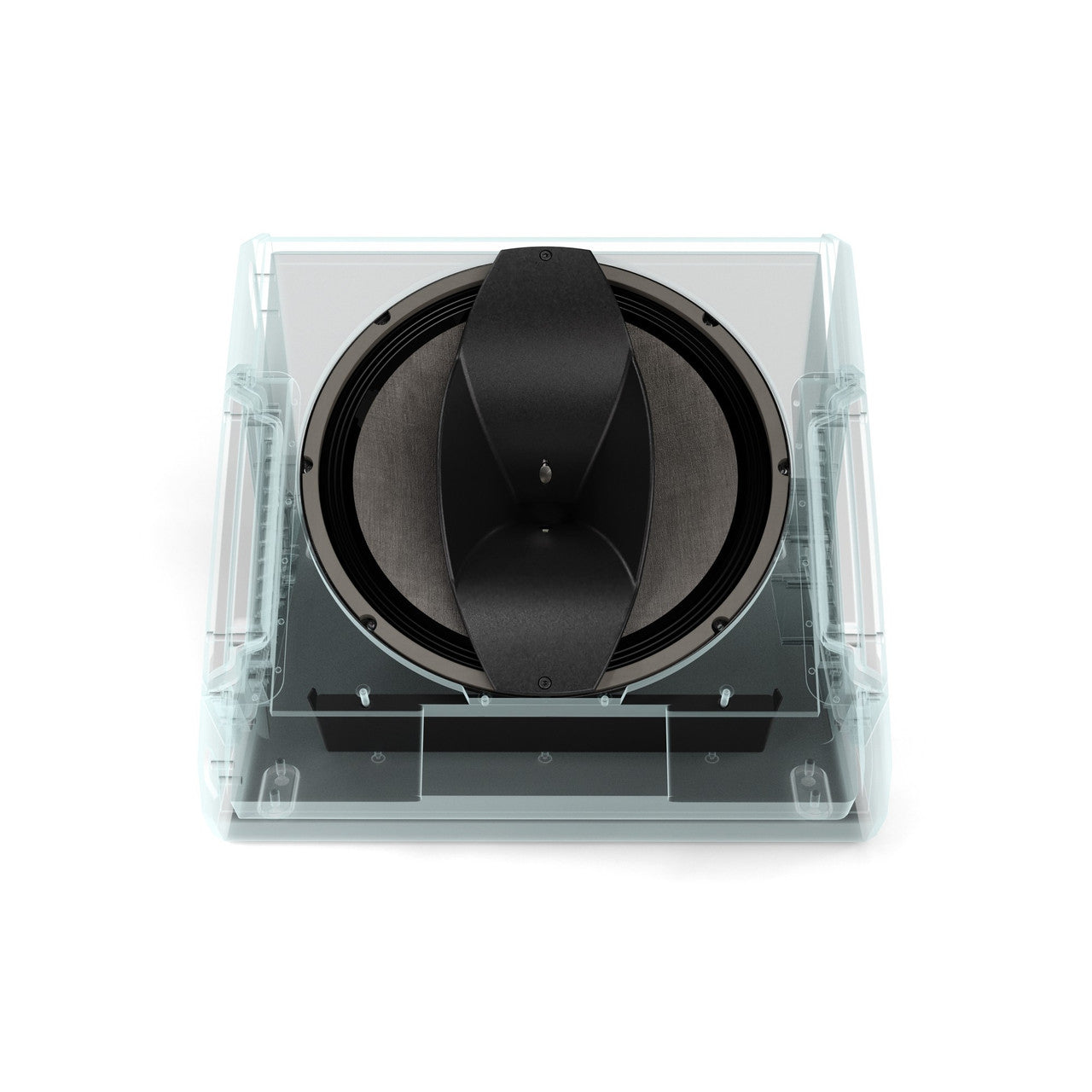

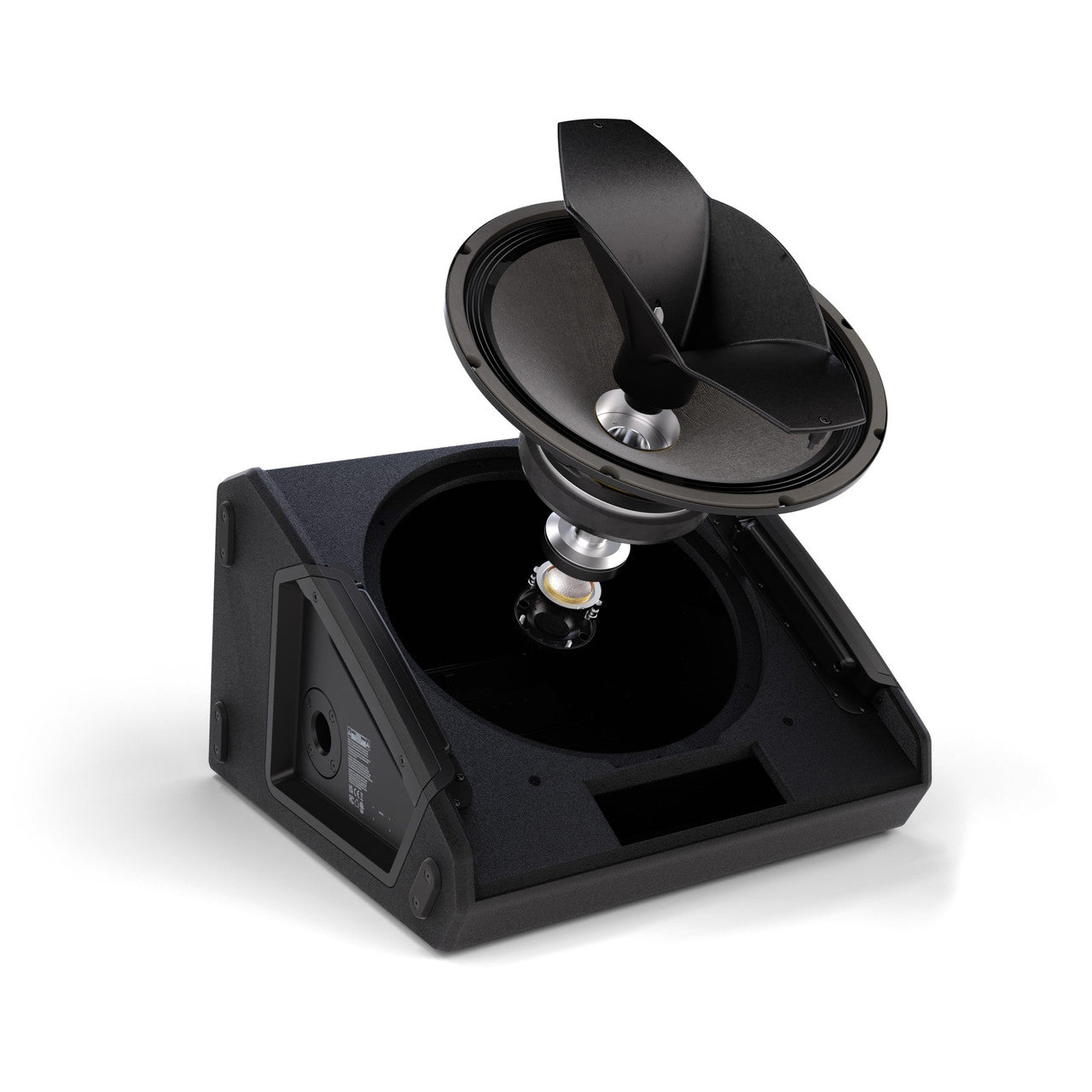

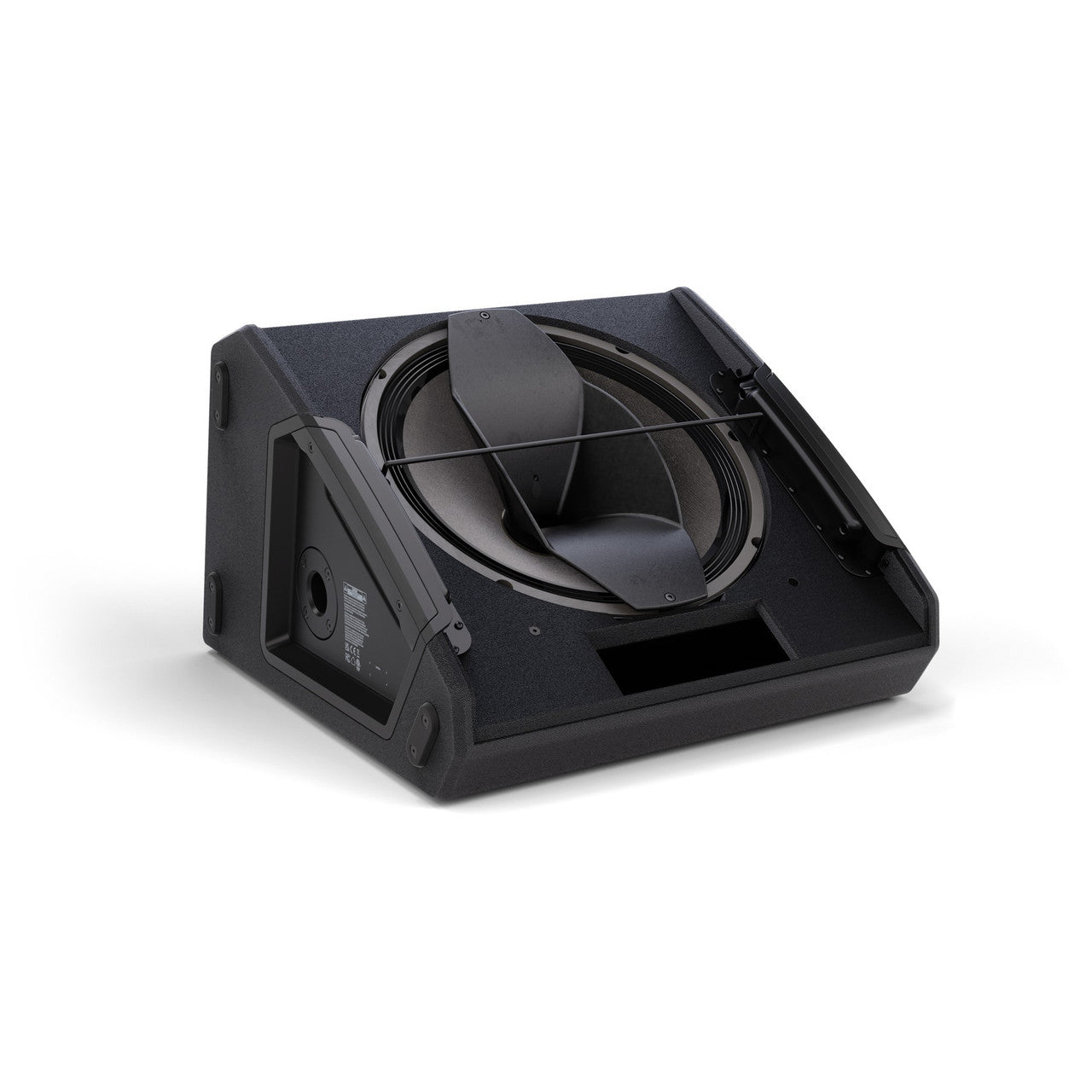

Coaxial design for true point source with a 1.75" titanium-diaphragm HF driver

15" woofer with 3" voice coil

Optimised, practical radiation pattern due to 50° x 90° CD horn

DynX® DSP (Gen.2) for distortion-free sound even at maximum volume

3-band EQ, Notch filter, 4 application presets and delay function

PowerCON compatible loop-through professional power connection

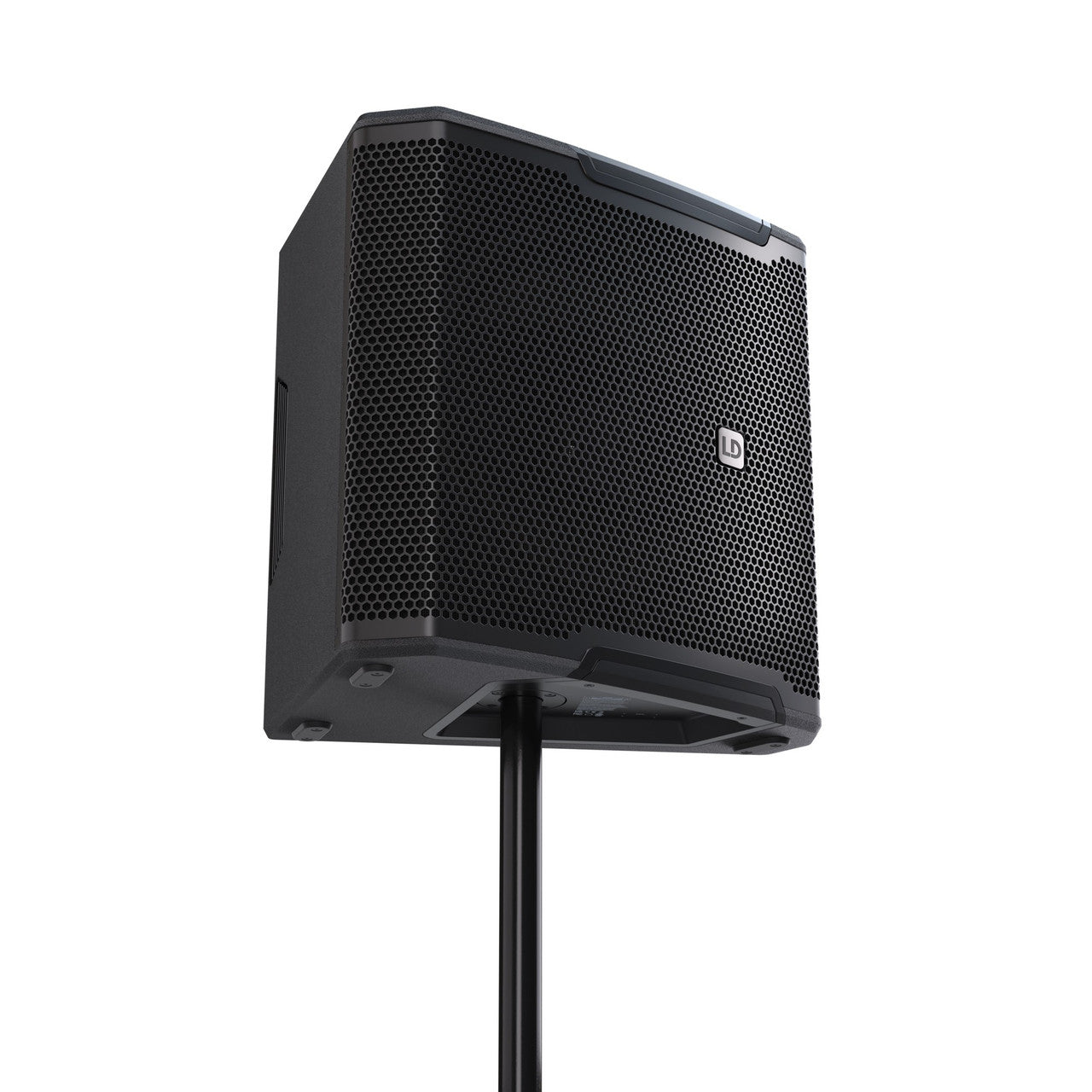

35 mm speaker stand flange for FOH applications

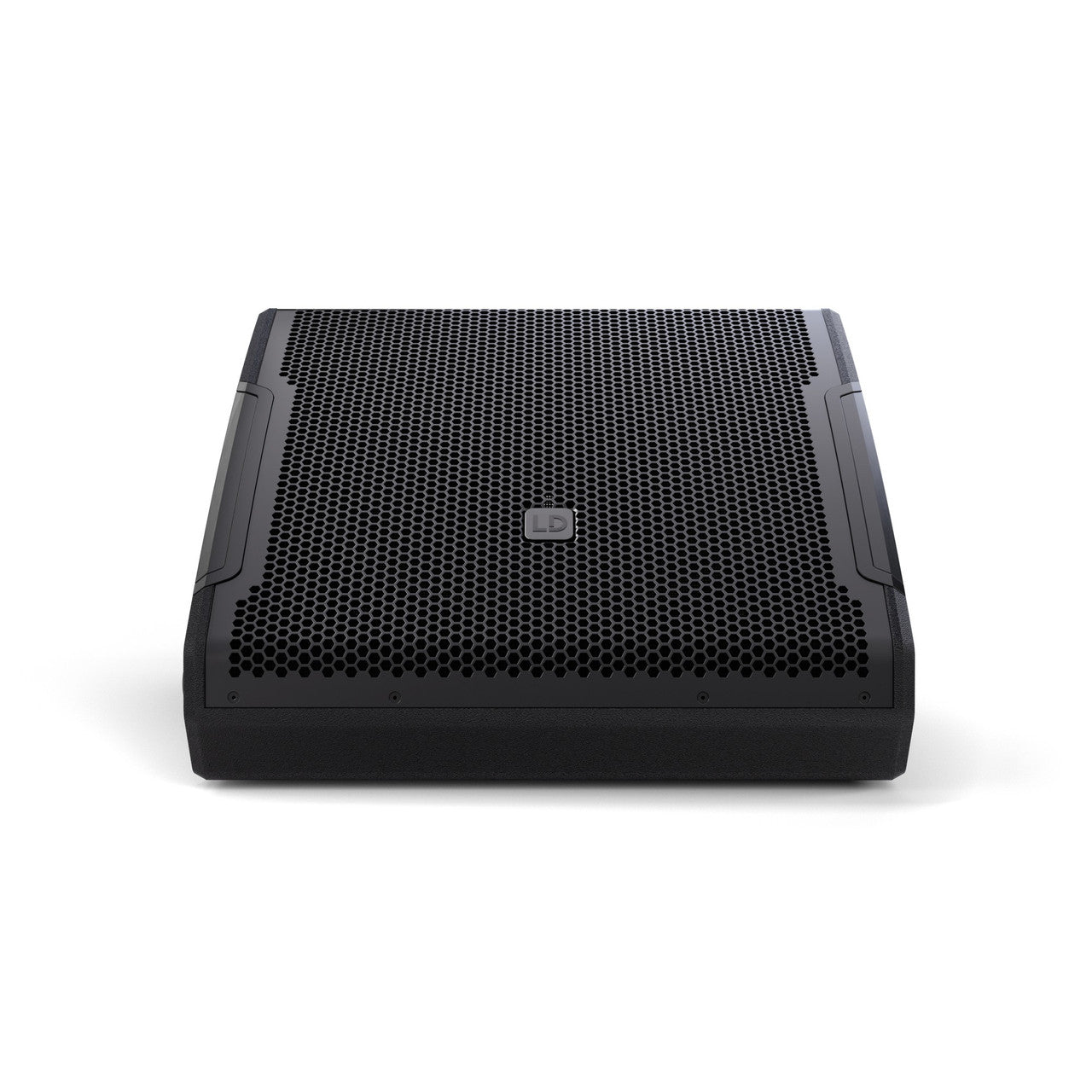

Durable Polyurea coating and heavy-duty front grille


Description

The MON 15 A G3 is part of an entirely newly developed family of powered stage monitors for high performance. The MON G3 Series incorporates the advanced technology and premium materials found in high-end monitors typically rented by professionals, making this quality available to everyone. These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. Besides this, the series offers a high-level of robustness, a comprehensive set of features and the elegant LD Systems design.

A maximum sound pressure level of 129 dB and superior bass reproduction make the MON 15 A G3 the best choice for loud band stages, as a drum fill or for stand-alone use as a compact front PA without an additional subwoofer. For a 15" stage monitor, it is unusually compact and elegant, so despite its impressive performance data, it blends harmoniously into the stage set.

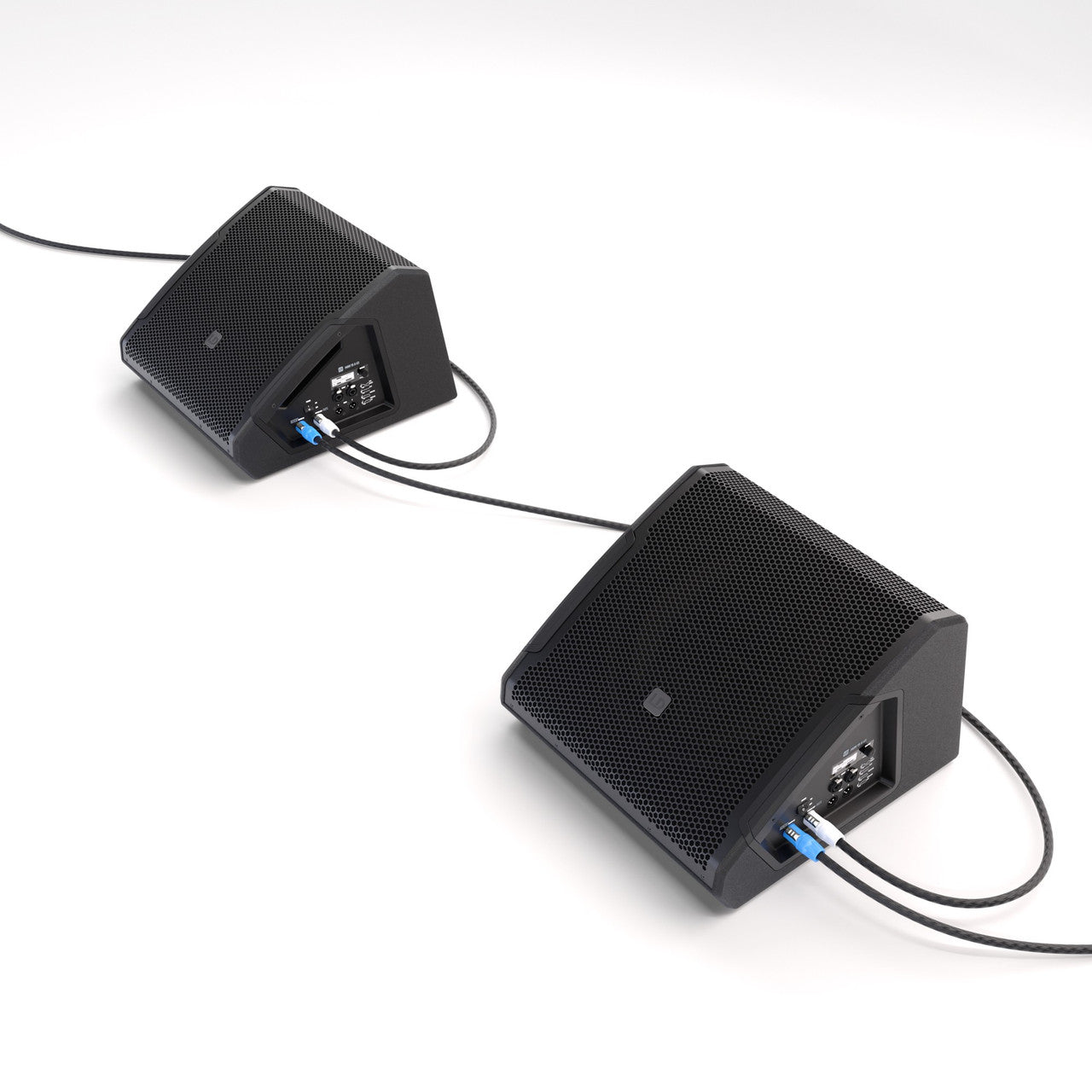

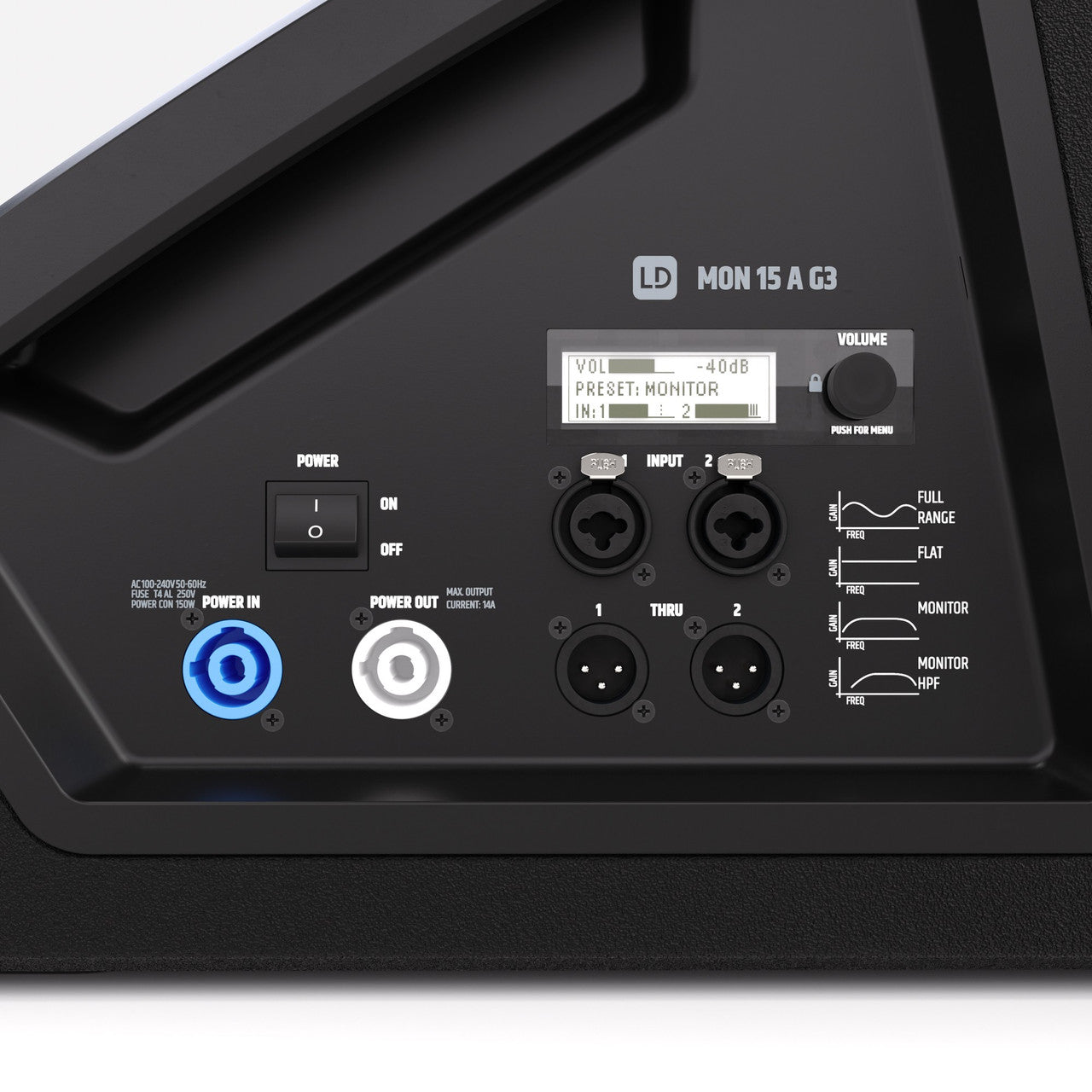

Both the signal (XLR/jack combo) and the power connection (PowerCON compatible) can be looped through. This allows for elegant, tidy cabling in multi-monitor set-ups or for distributed sound reinforcement.

Specifications
General
Product type Stage monitors
Type Powered
Color Black
System output (RMS) 300 W
System output (Peak) 1200 W
Max. SPL Average (Sine burst) 122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst) 129 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB) 58 - 18000 HZ
Frequency response (-10 dB) 48 - 20000 Hz
Crossover frequency 1300 Hz

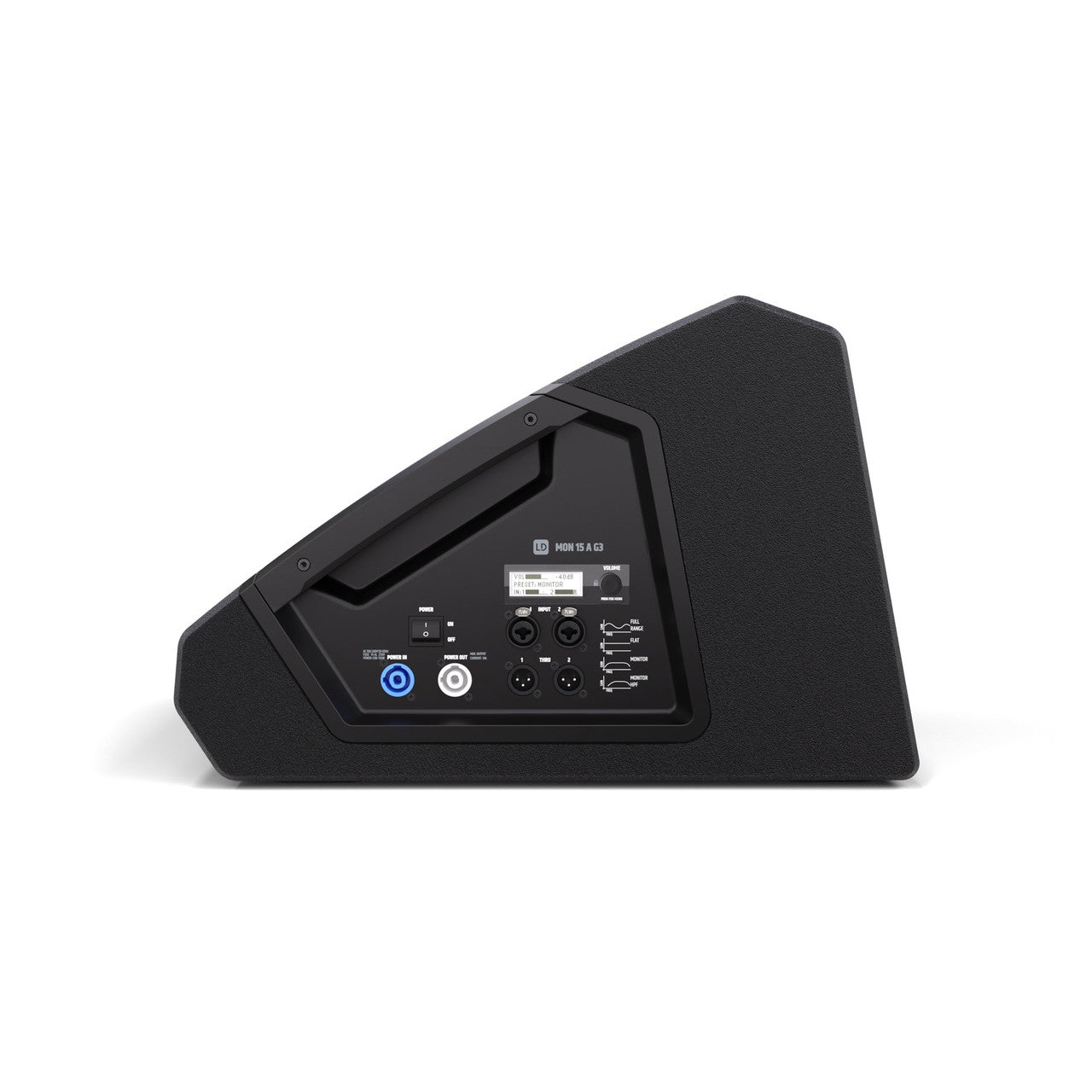

Monitor angle 33°
Dispersion (H x V) 50° x 90°
Width 505 mm
Depth 517 mm
Height 340 mm
Features 3-band EQ (High, Mid, Low), Delay line, Notch filter
Weight 23,15 kg
General
Product type Stage monitors
Type Powered
Color Black
System output (RMS) 300 W
System output (Peak) 1200 W
Max. SPL Average (Sine burst) 122 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
Max. SPL Peak (Sine burst) 129 dB (fullspace @1m, 10% THD)
Frequency response (-3 dB) 58 - 18000 HZ
Frequency response (-10 dB) 48 - 20000 Hz
Crossover frequency 1300 Hz
Monitor angle 33°
Dispersion (H x V) 50° x 90°
Width 505 mm
Depth 517 mm
Height 340 mm
Features 3-band EQ (High, Mid, Low), Delay line, Notch filter
Weight 23,15 kg
Low/mid woofer
Low/mid Woofer dimensions 15 "
Woofer dimensions (mm) 381 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer type Coaxial loudspeaker
Woofer voice coil 3 "
Woofer voice coil (mm) 75 mm
Cabinet construction Bass Reflex
Cabinet material 15 mm Birch Plywood, 15 mm MDF
HF
Horn CD Horn
Tweeter dimensions 1 "
Tweeter dimensions (mm) 25.4 mm
Tweeter magnet Ferrite
Tweeter brand Custom-made
Tweeter voice coil 1.75 "
Tweeter voice coil (mm) 44.45 mm
Amplifier module (integrated)
Amplifier Class D
Protection circuits Multiband limiter, over voltage, over-current, thermal overload
Operating Temperature 0 - 40 °C
Humidity Range < 80 % ( non-condensing )
Fuse T4AL 250 V
Controls On / off switch, Rotary/push encoder
Indicators LC display
Operating voltage SMPS
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Power consumption 150 W
Power in / out PowerCON compatible
Line inputs 2
Line input connectors 6.3 mm jack, XLR - combo
Line thru 2
Line through connector XLR
