Product Overview

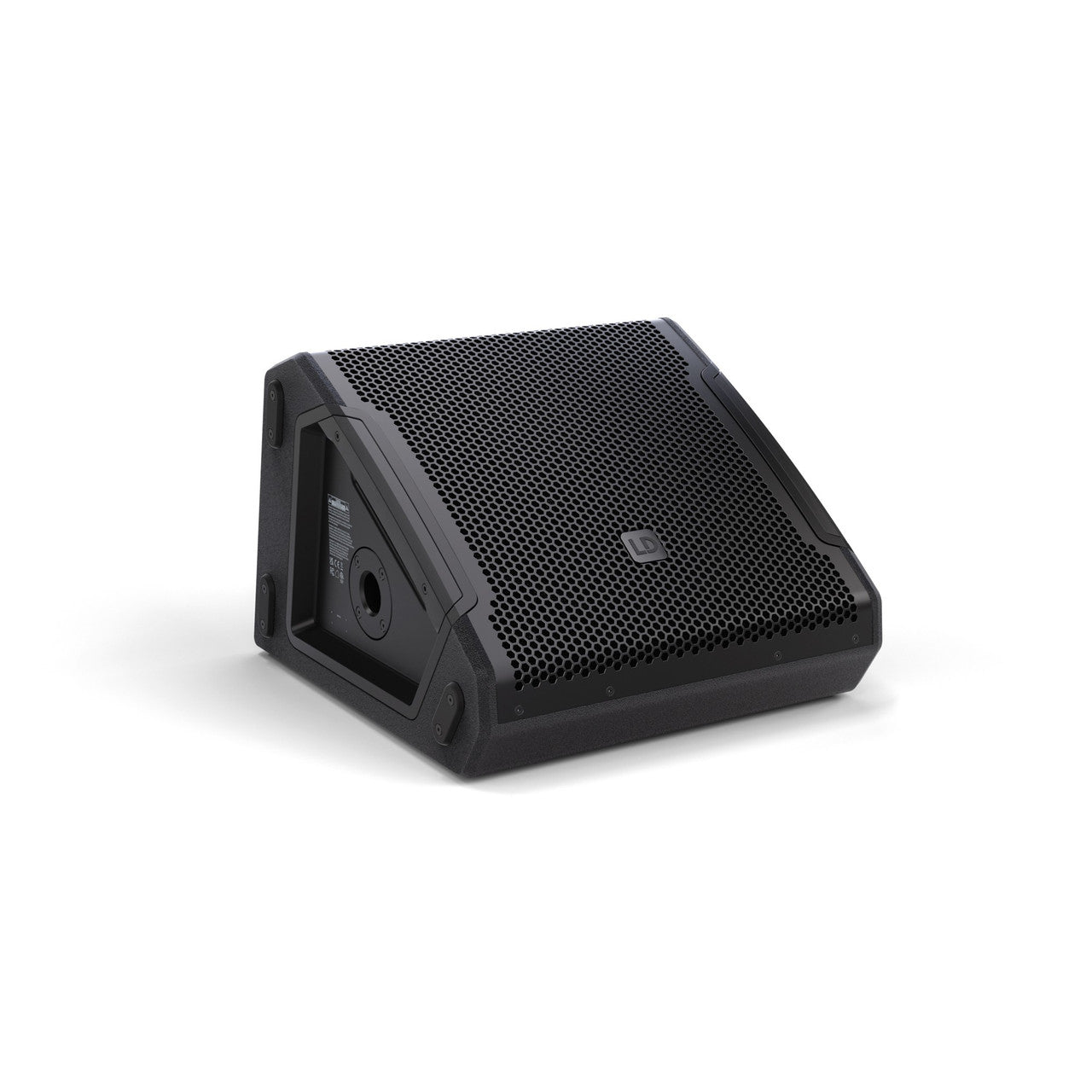

The LD Systems MON 12 A G3 is a compact, powered stage monitor with a high-performance design. Armed with a 1,200-watt Class D power amp, the MON 12 A G3 boasts a 127dB maximum SPL. Its 12-inch woofer and 1-inch titanium-diaphragm coaxial tweeter yield a 55Hz–20kHz frequency response along with a stage-filling 50-degree x 90-degree dispersion pattern. Its second-generation DynX DSP ensures distortion-free sound, even with the volume cranked, and you get a 3-band EQ, notch filter, four application presets, and a delay line function. You'll appreciate the MON 12 A G3's rugged PowerCON-compatible loop-through power connection, while its 35mm speaker stand flange makes it ideal for FOH applications. An ultra-durable polyurea coating and heavy-duty front grille round out the MON 12 A G3's robust features.
Inventive coaxial design

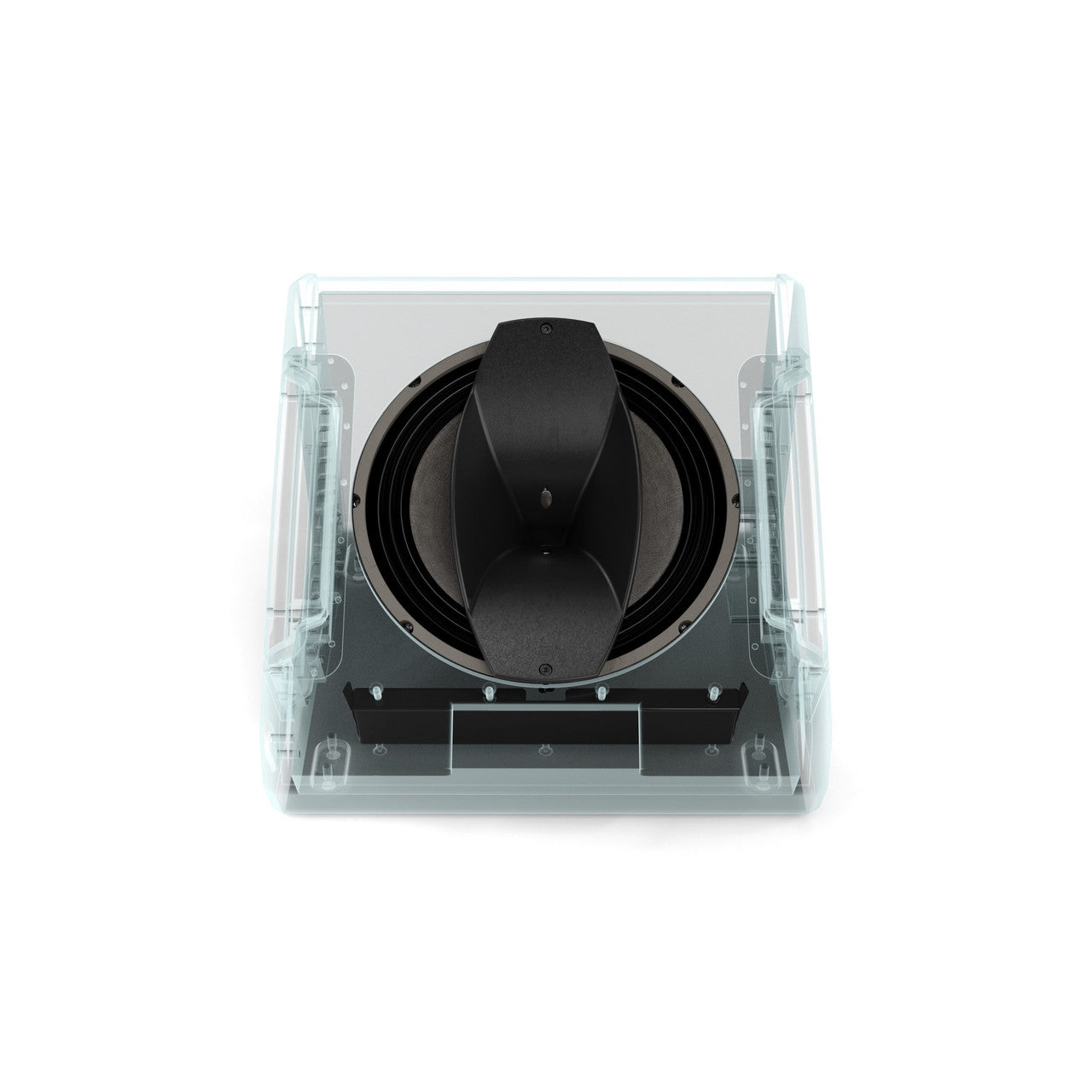

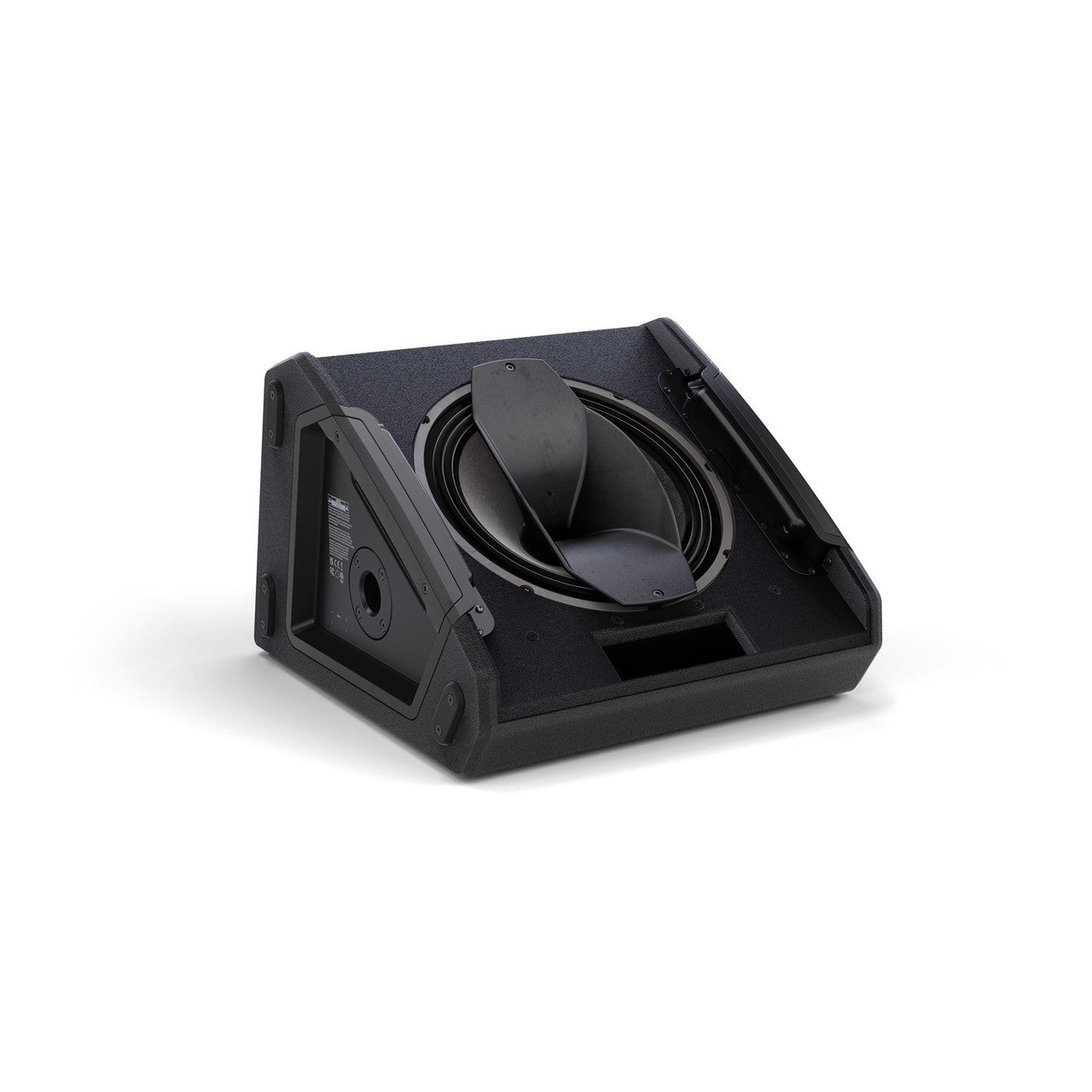

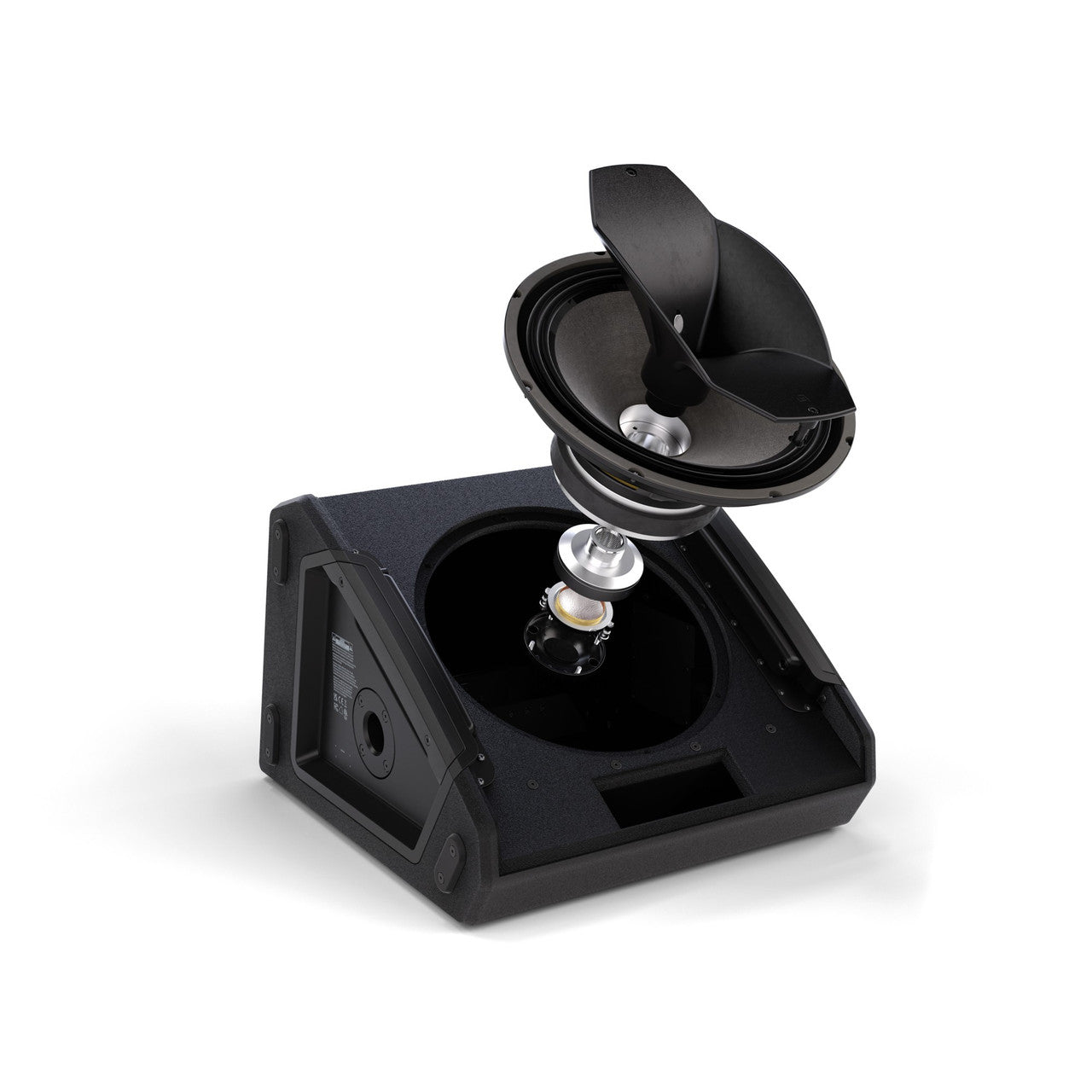

The MON 12 A G3 brandishes a clever coaxial design, which yields a rock-solid, true-point source via its 1-inch titanium-diaphragm tweeter and its 12-inch woofer with a 2.5-inch voice coil. This active stage monitor's BEM-optimized horn exhibits a 50-degree x 90-degree dispersion pattern. You also get a bass reflex port, which gives you thunderous low-frequency response all the way down to 55Hz.
State-of-the-art DynX DSP
Thanks to the LD Systems MON 12 A G3's proprietary second-generation DynX DSP, you can expect dynamic, high-resolution sound across the entire frequency spectrum, along with distortion-free performance — even at maximum volume. The MON 12 A G3 also includes four intuitive sound presets and a 3-band EQ for fast, user-friendly sound adjustment. When we ran the MON 12 A G3 through its paces here at AudioProCT, we were especially impressed by the effective feedback elimination afforded by its tunable notch filter. You also get a delay line function, compensating for distances up to 33 feet.
High-efficiency Class D power

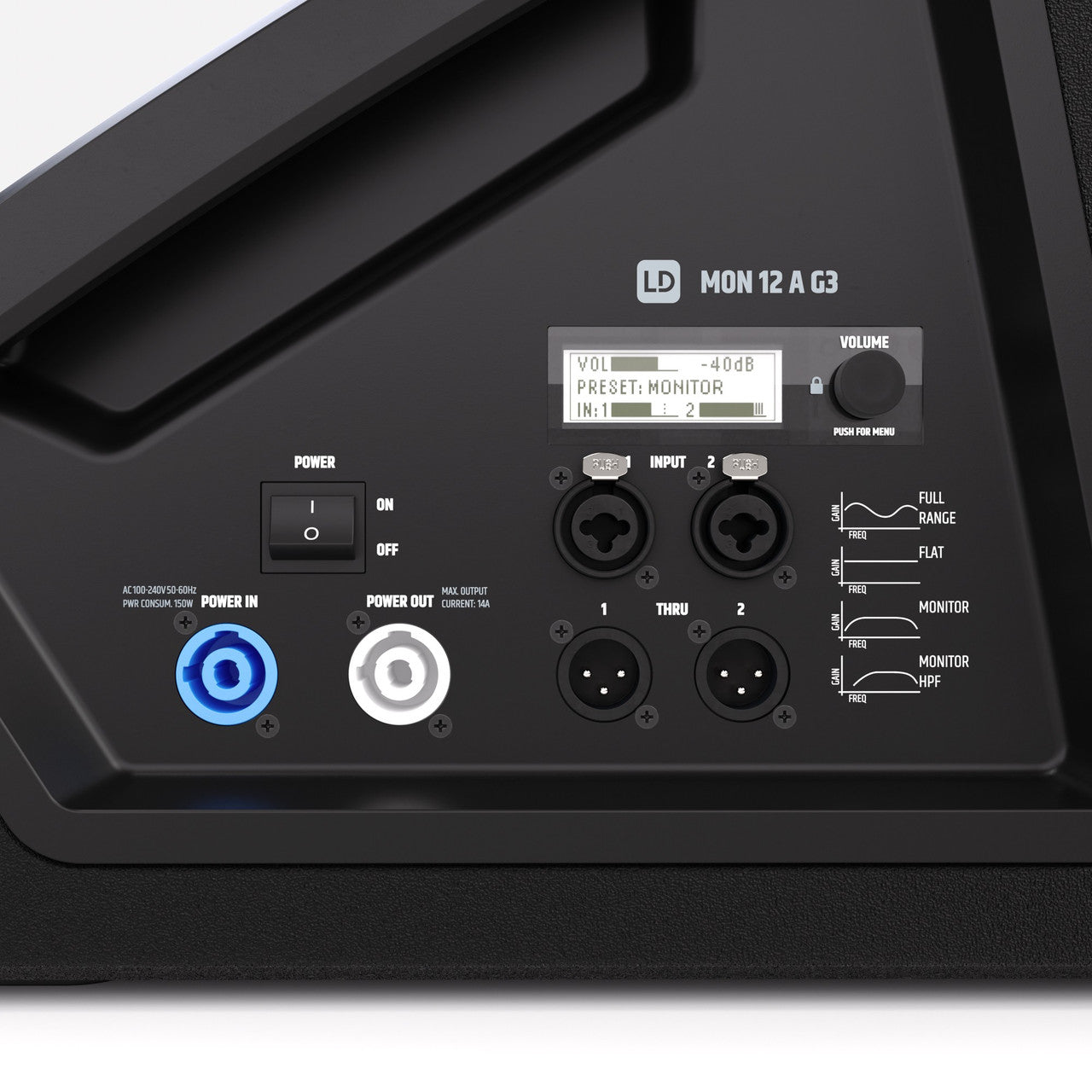

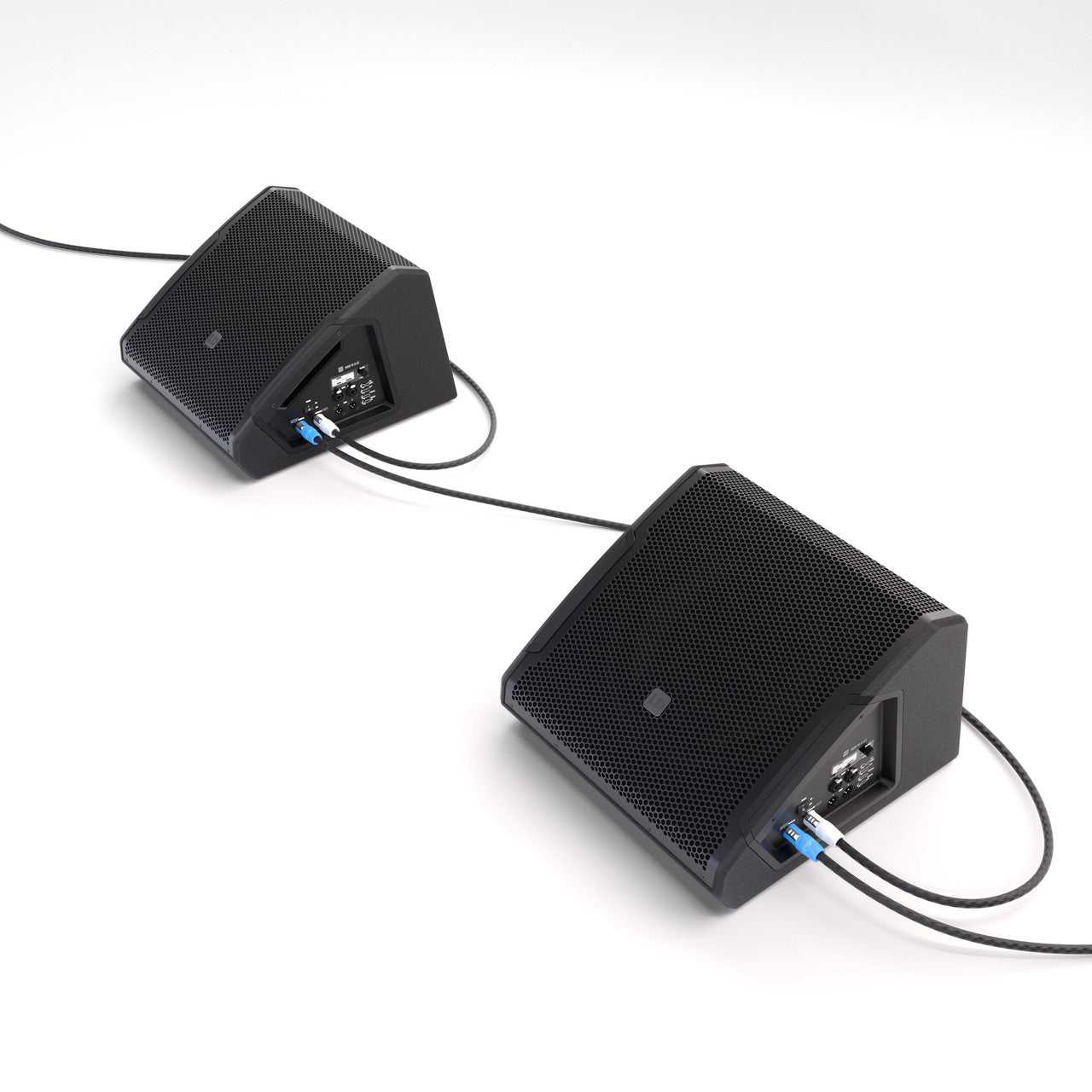

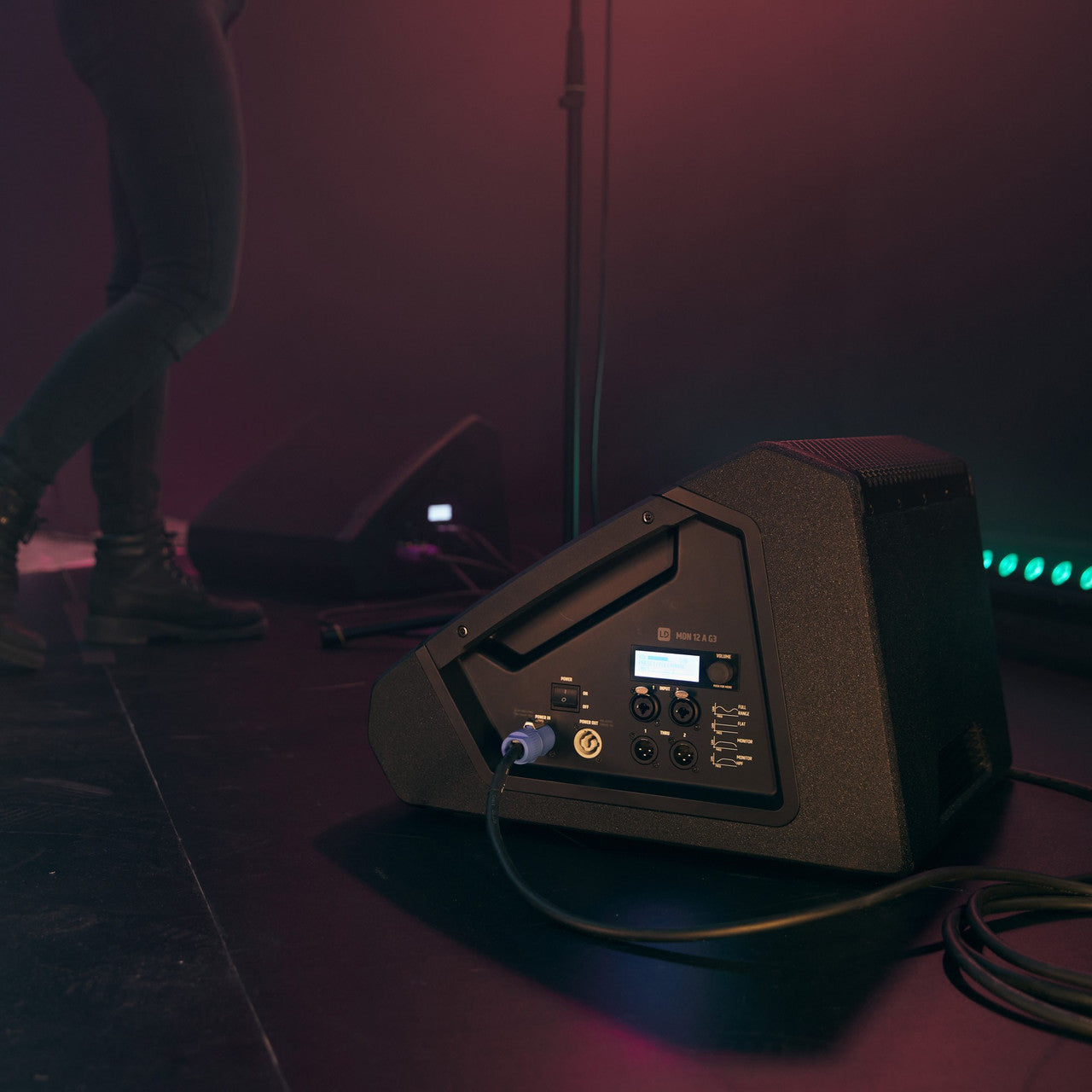

The MON 12 A G3's highly efficient Class D power amplifier delivers 300 watts RMS and 1,200 watts peak with a dynamic, assertive, stage-filling sound. A secure, PowerCON-compatible port ensures a reliable power connection for your performance, allowing the daisy-chaining of multiple MON 12 A G3 units for efficient power management onstage. You also get two XLR/Jack Combo input channels for parallel connection of multiple audio devices and a pass-through connector that allows direct signal transmission to other devices or monitors, maintaining uniform sound across your entire system.
LD Systems MON 12 A G3 Powered Coaxial Stage Monitor Features:
- 300W RMS/1,200W peak Class D power amp boasts a 127dB maximum SPL
- 12-inch woofer and 1-inch titanium-diaphragm coaxial tweeter yield a 55Hz–20kHz frequency response
- BEM-optimized horn exhibits a stage-filling 50° x 90° dispersion pattern
- Bass reflex port gives you thunderous low-frequency response
- Proprietary second-generation DynX DSP ensures distortion-free sound at maximum volume
- 4 intuitive sound presets and a 3-band EQ supply fast, user-friendly sound adjustment
- Tunable notch filter provides outstanding feedback elimination
- Delay line function compensates for distances up to 33 feet
- Rugged PowerCON-compatible loop-through power connection

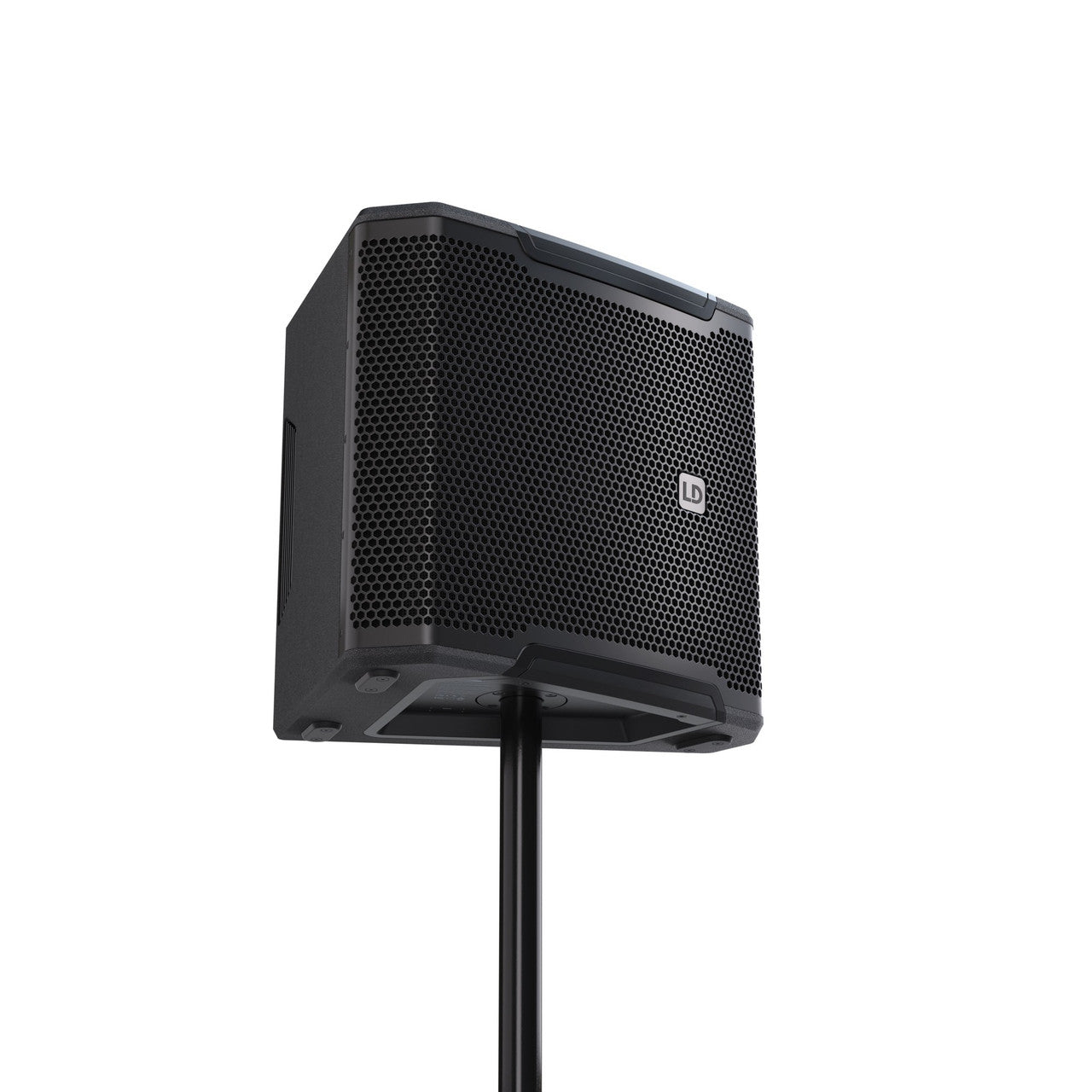

- 35mm speaker stand flange for FOH applications

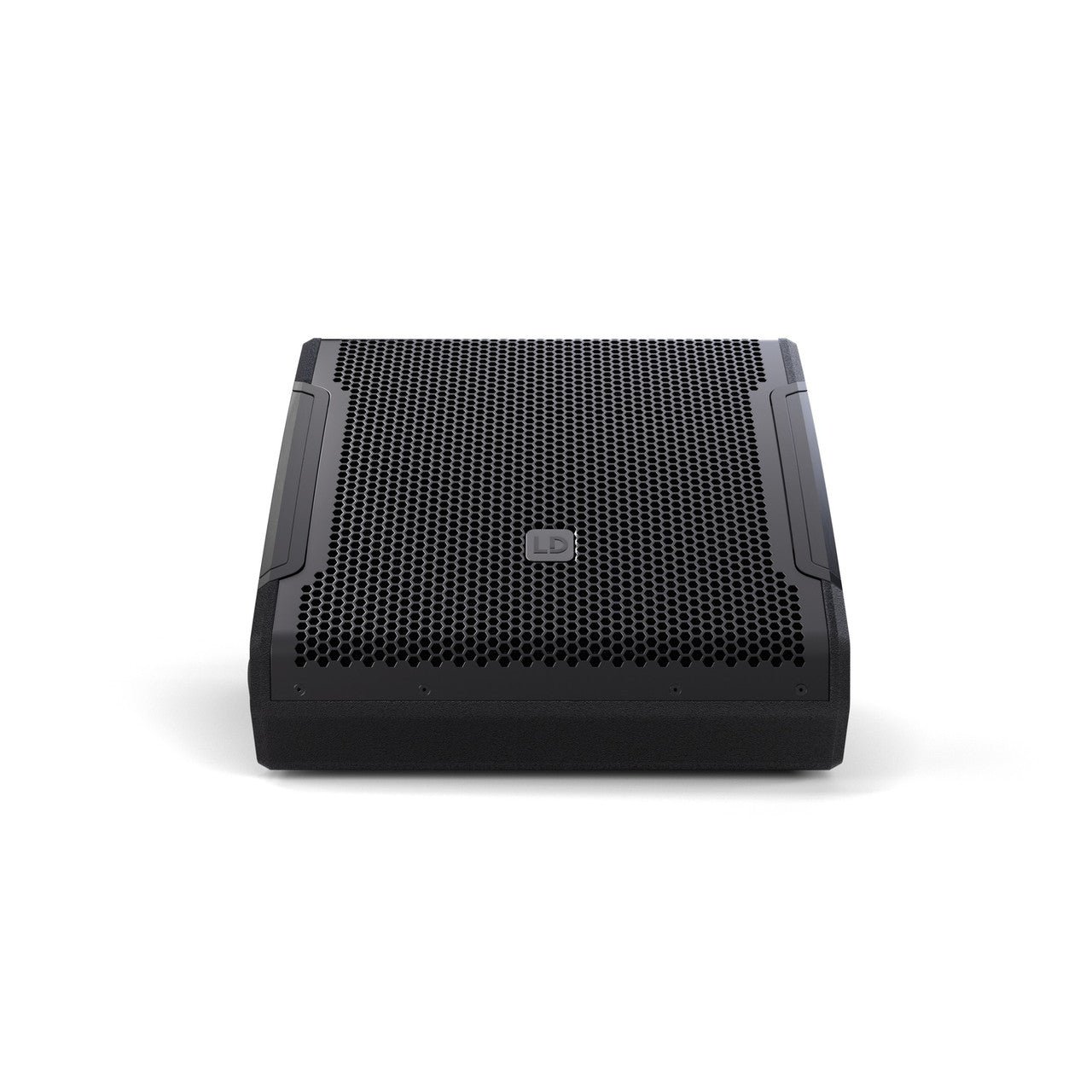

- Ultra-durable polyurea coating and heavy-duty front grille
Tech Specs
- Type:Stage Monitor
- Powered:Yes
- LF Driver Size:12" Woofer
- HF Driver Size:1" Tweeter
- Power Rating:300W RMS
- Total Power:1200W Peak
- Inputs:2 x XLR-1/4" combo
- Outputs:2 x 1/4" (thru)
- Frequency Response:55Hz-20kHz (-10dB)
- Crossover Frequency:1.4kHz
- Maximum Peak SPL:127dB SPL @ 1m
- Horizontal Coverage Angle:50 Degrees
- Vertical Coverage Angle:90 Degrees
- Enclosure Material:15mm Birch Plywood, Steel Grille, Die-cast Aluminum Handles
- Mounting Options:Floor Wedge, 35mm Pole Socket
- Power Source:2 x PowerCON (in, out)
- Height:12.4" (315mm)
- Width:16.7" (425mm)
- Depth:17.83" (453mm)
- Weight:38.36 lbs (17.4kg)
- Manufacturer Part Number:LDS-MON12AG3(US)
