Product Overview
- Professional column PA system with 1500 W RMS and 132 dB max. SPL
- Cardioid column for controlled low- and mid-range frequency dispersion and cardioid subwoofer application (with additional subwoofer)
- TrueWireless™ stereo technology for wireless stereo pairing of two column systems
- aptX™ coding and advanced audio coding (AAC) for high-resolution Bluetooth® streaming
- BEM-optimized high-frequency waveguide for uniform dispersion pattern, phase plug for coherent mid-range wavefront and flow-optimised bass-reflex ports
- DynX® DSP technology for distortion-free sound at maximum volume
- Automatic setup detection
- Fast and simple assembly without stands or cables

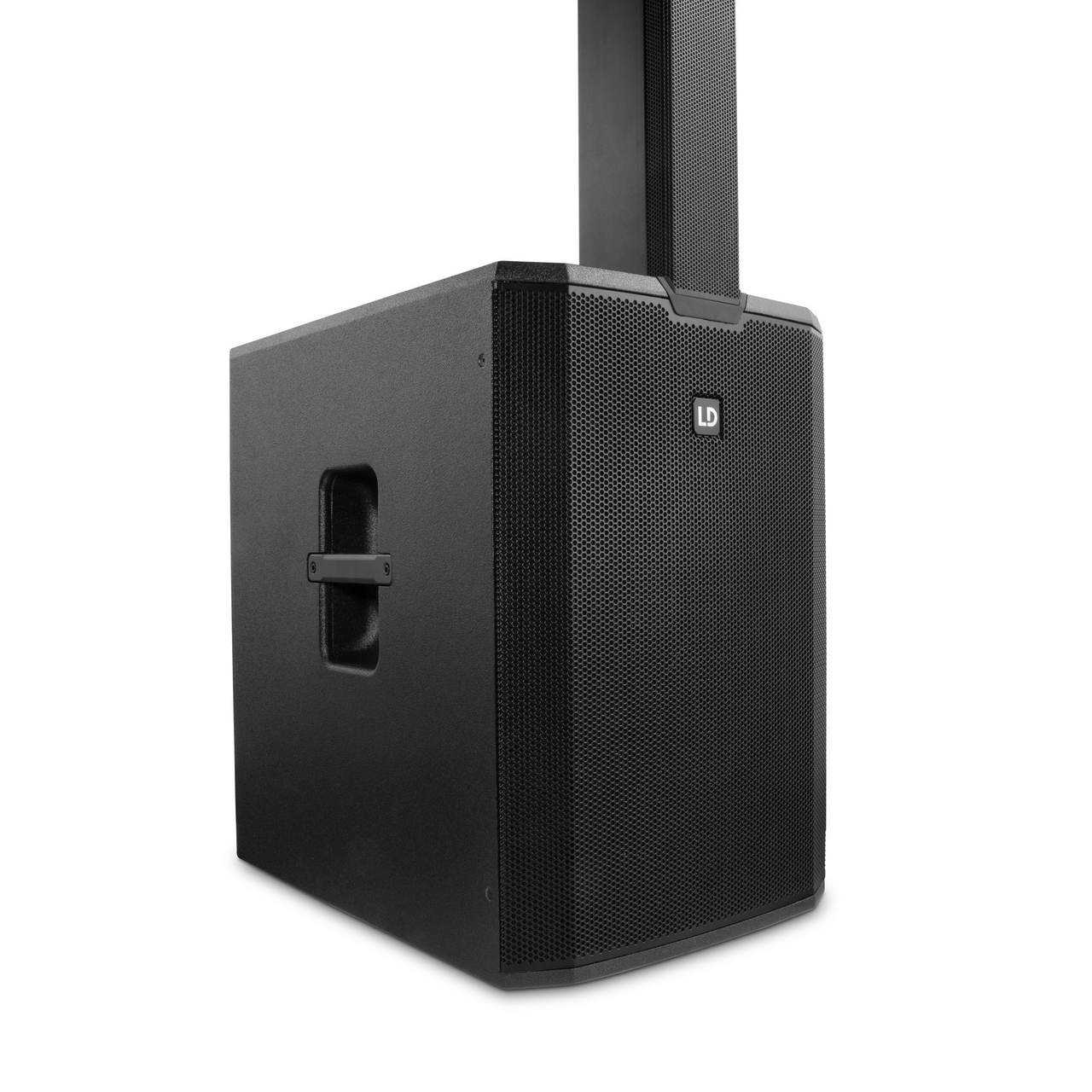

- Rugged subwoofer housing made out of polyurea-coated birch plywood and lightweight, powder-coated aluminium column
Column systems have literally revolutionized numerous application areas for bands and DJs. Never has it been easier to provide a consistent sound solution from a simple, inconspicuous PA system - even in large spaces. The MAUI® 44 G2 is now the practical, powerful solution for the professional segment.

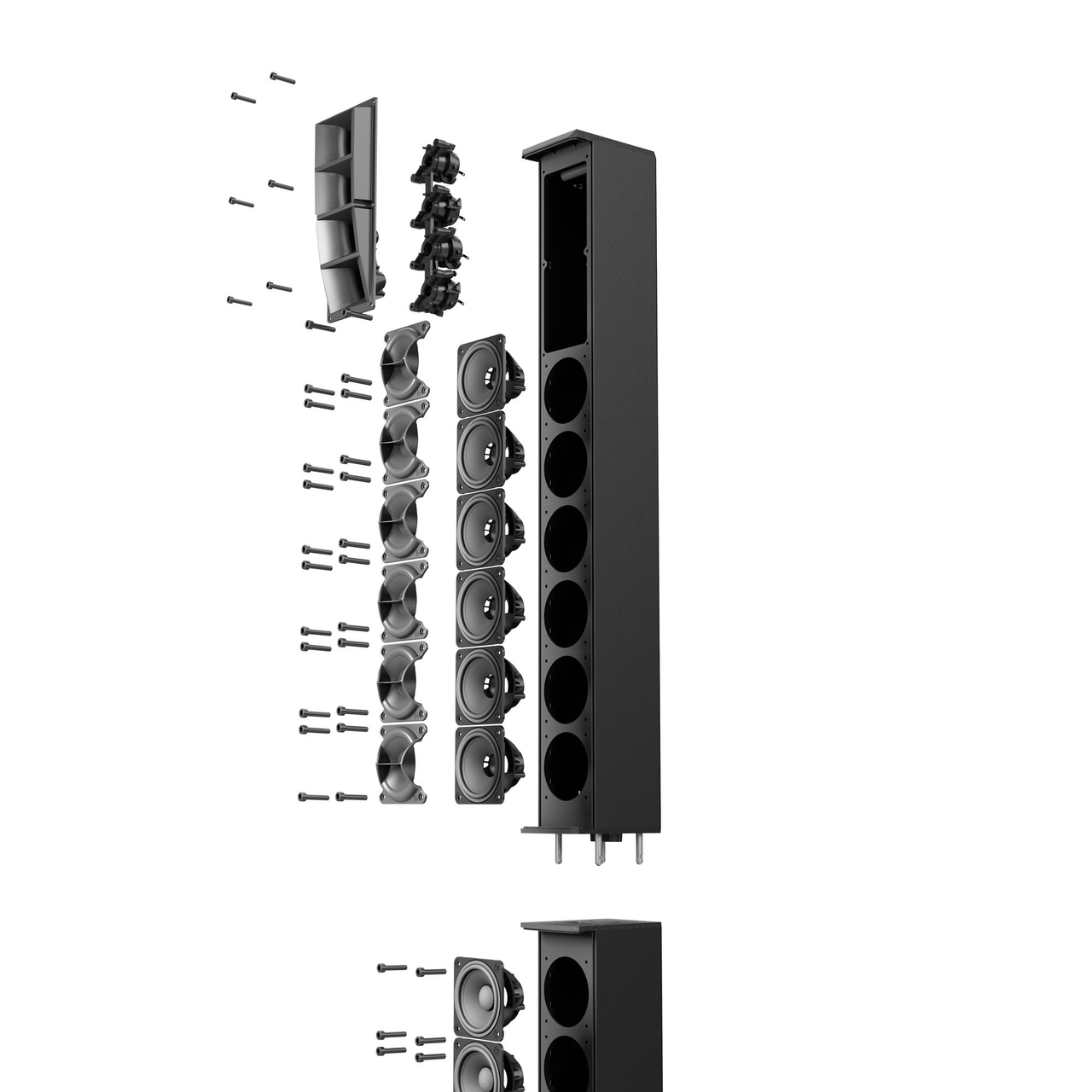

The LD Systems MAUI® 44 G2 is the flagship of the MAUI series column PAs: it offers an enormous 1,500 watts of total output (RMS) with a frequency response of 37 Hz to 20 kHz and a sound-level pressure of 132 dB (peak). With its outstanding sound properties and wide-ranging functions, this compact column PA is perfect for rental companies, musicians, small clubs, street festivals and permanent installations. The cardioid properties of the column elements and the possibility of creating a cardioid bass with an additional subwoofer further highlights the professional nature of this sound system. The column achieves a rear attenuation of 18 dB, the subwoofer 15 dB. The MAUI® 44 G2 also sets the tone when the two-part column is equipped with twelve 3.5" neodymium full-range speakers and four 1" HF drivers with waveguide. The phase plugs on the six upper drivers improve horizontal directivity, reduce distortion and optimise the sensitivity below the crossover frequency for the tweeters. In addition, the four tweeters feature specially designed and optimised compression drivers coupled to a constant directivity waveguide to provide 120° of coverage across the width and 25° of focused vertical directivity. The curved design of the waveguide transports more energy in the high frequencies to listeners standing further away.
In the case of permanent installations or when providing sound for conferences, the TrueWireless™ stereo function makes life a whole lot easier since it enables two systems to be wirelessly connected for stereo reproduction. Bluetooth® streaming in HD quality is no problem at all thanks to aptX™ and AAC Codec, while DynX® DSP technology ensures distortion-free sound reproduction even at the very highest volumes. Total and subwoofer levels can be individually adjusted, providing a perfectly balanced sound in all situations, with a crystal-clear treble, a crisp mid-range and - thanks to the flow-optimised bass-reflex channels - a powerful bass.
Another particularly user-friendly feature of the MAUI® 44 G2 is automatic set-up recognition: if the column is removed to use the subwoofer as a slave, for example, the display automatically jumps to SLAVE and functions such as Bluetooth and the volume controls for MAIN and SUB no longer appear.

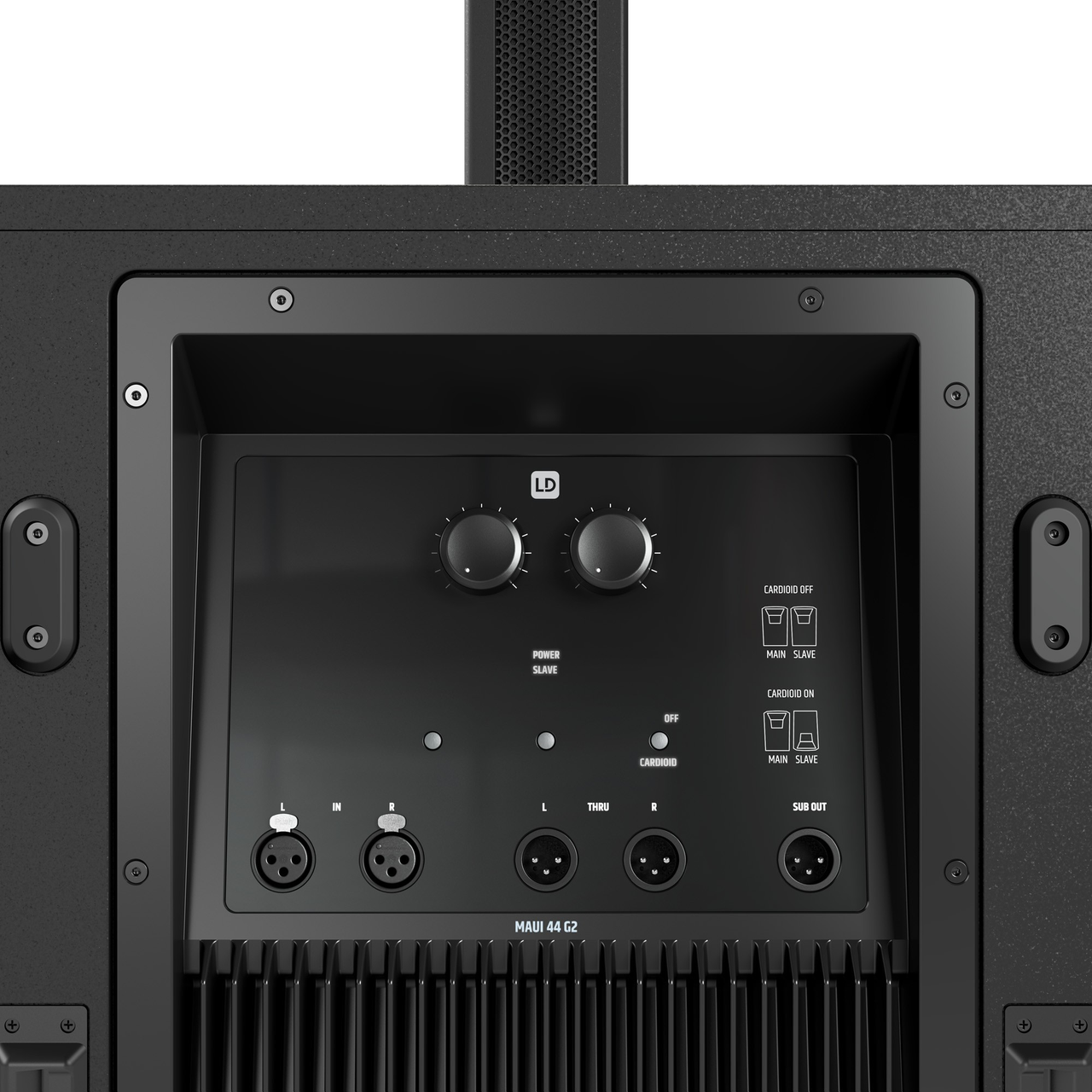

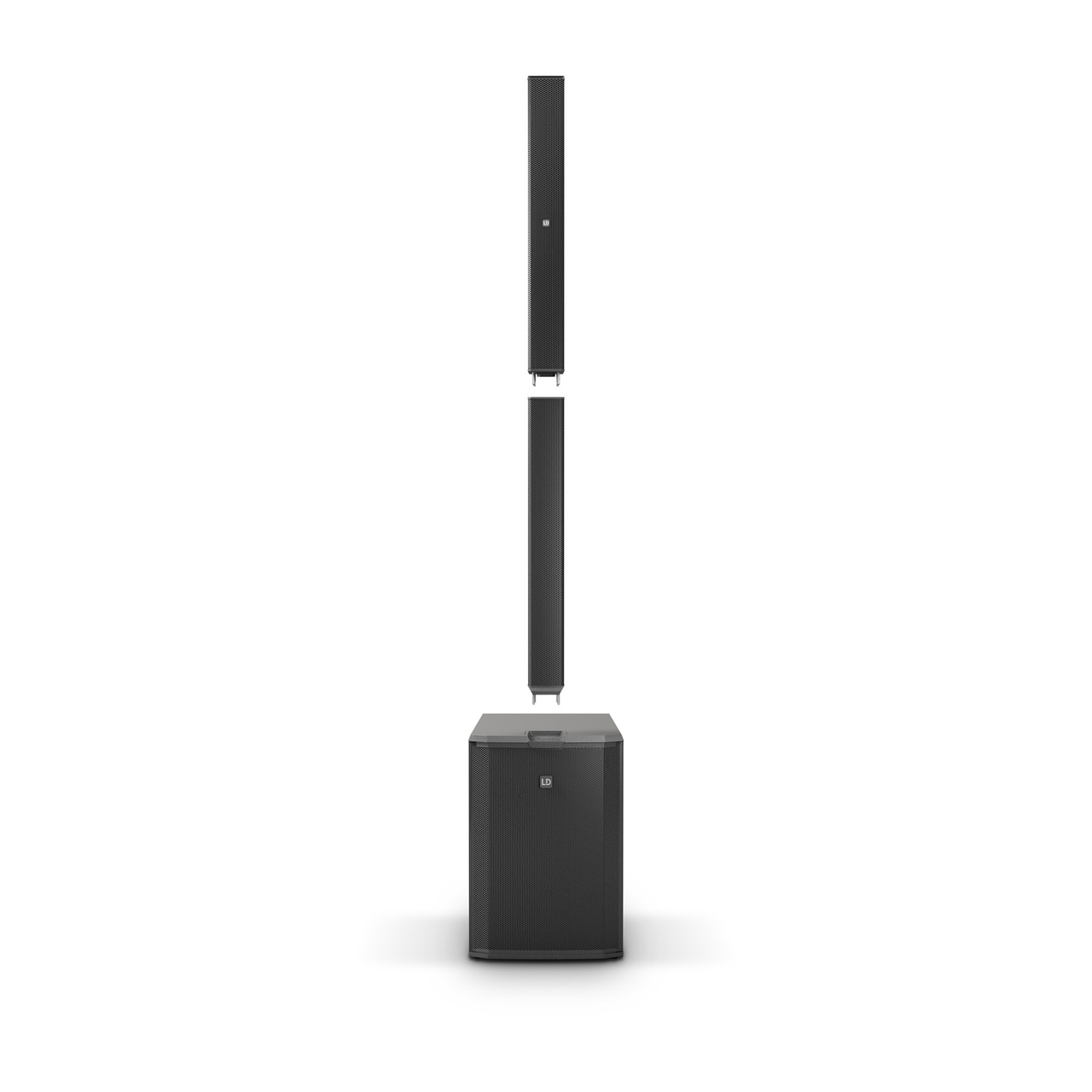

The MAUI® 44 G2 is absolutely top-class when it comes to transportation and mobile use, too: assembly is quick and simple with no need for cables or stands - special multi-pin connections are used instead. Together, the rugged subwoofer housing made of birch multiplex with polyurea coating and the light, powder-coated aluminium column weigh a total of less than 48 kg - a weight reduction of 20% as compared to the predecessor model. The optionally available transport roller board, carry bag and sub cover do a superb job in day-to-day use. In terms of inputs, the MAUI® 44 G2 offers two XLR IN connections, while two XLR outputs enable a wired stereo configuration of two systems. Meanwhile the SUB OUT can be used to hook up an additional subwoofer, and the power supply is via secure and reliable powerCon connection.
Product typePA Complete SystemsTypePoweredColorBlackMax. SPL (peak)132 dBFrequency response37 - 20000 HzDispersion (H x V)120 x 25Total Height2256 mmWeight47,6 kgFeaturesBluetooth Audio Streaming , DSP-based Signal Processing , Excellent Sound Dispersion , Mono/ Stereo ApplicationSubwoofer
Woofer dimensions15 "Woofer size381 mmWoofer magnetNeodymiumWoofer brandCustom-madeWoofer voice coil4 "Woofer voice coil (mm)101 mmCabinet constructionBass ReflexHousing material15 mm Birch Plywood , 18 mm Birch PlywoodCabinet surfacePolyureaDimensions Subwoofer (W x H x D)434 x 634 x 637 mmSubwoofer weight36.4 kgMid/Hi System
Midrange size12 x 3,5 "Midrange size12 x 89 mmMidrange magnetNeodymiumMidrange brandCustom-madeMidrange voice coil1 "Midrange voice coil25.4 mmTweeter dimensions4 x 0.5 "Tweeter dimensions (mm)12.7 mmTweeter magnetNeodymiumTweeter brandCustom-madeTweeter voice coil1 "Tweeter voice coil (mm)25.4 mmWave GuideCD WaveguideLoudspeaker inputs1Speaker input connectionsCustom-made multipinCabinet construction mid/highClosedMid/Hi system cabinet materialAluminumMid/Hi system cabinet surfaceHD coated aluminum , multi layer mesh (cloth)Mid/Hi system width103 mmMid/Hi system height1621 mmMid/Hi system depth135 mmMid/Hi system weight11.2 kgAmplifier module (integrated in subwoofer)
AmplifierClass DSystem output (RMS):1500 WProtection circuitsDC protection , Multiband limiter , short circuit , thermal protectionCoolingConvectionControlsBluetooth HOLD TO LINK button , Bluetooth STEREO LINK button , Cardioid On/Off , Main level , Power On/Off , Sub levelIndicatorsBluetooth , Bluetooth STEREO LINK , Cardioid On/Off , Limit , Power , Protect (protection circuit engaged) , Signal , slave mode , Subwoofer ModeMains connectorNeutrik PowerConOperating voltage100 V AC - 120 V AC, 50 - 60 Hz , 220 V AC - 240 V AC, 50-60 HzAmbient temperature (operating)0 - 40 °CRelative Humidity< 80% (non-condensing)Line Inputs2Line Input ConnectorsXLR femaleLine Outputs2Line Output ConnectorsXLR maleNumber of speaker outputs1Loudspeaker Output ConnectorsCustom-made multipinBluetooth StandardA2DPBluetooth Audio DecoderAAC , aptX , SBCDSP characteristics
Bit depth AD/DA converter24 bitSampling frequency48 kHzSignal-to-noise ratio106 dB
