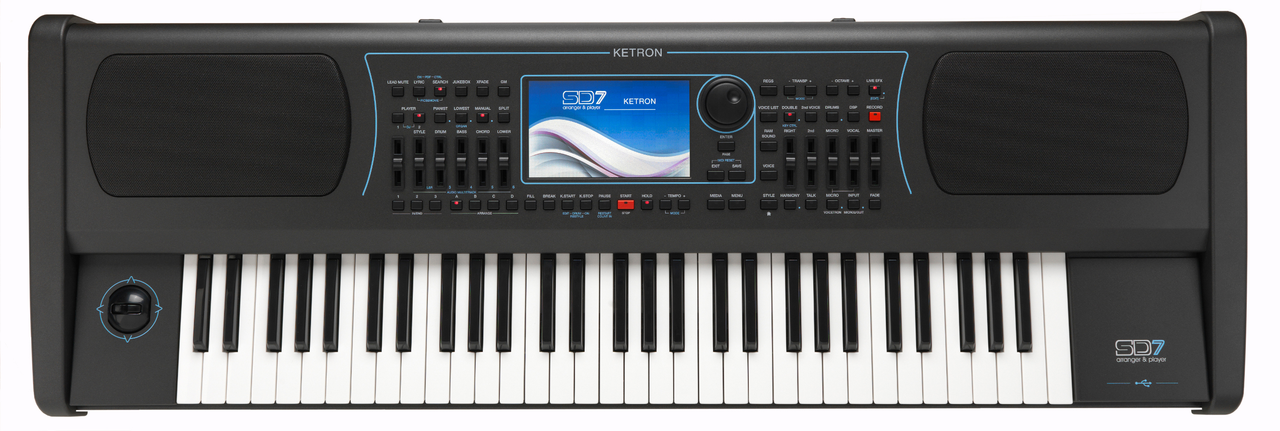

Product Overview
| KEYBOARD | 61 key light weighted. 3 Velocity Curves . Aftertouch. Portamento.Joystick: Pitch.Modulation. Transposer: +/- 24. Octave : +/- 2. |
|
POLYPHONY |
128 note. Multitimbral 48 parts |
|
DISPLAY |
Lcd color Tft 7”. Touch sensitive 800 x 480 dots. Brightness control. |
|
PLAYER |
Double Player. Files recognized : Wav, Midi , Mp3, Mp4, Avi, Mov, Flv, Cdg, Jpg, Txt, Pdf. |
|
PLAYER FUNCTIONS |
Marker. Sync/Next. Autoplay. Lead Mute. GM part. Lyric Off. Cross fade. File Search. Play List. My Folder. Transposer. Time stretching. Metronome Click. Midi Multimix. Song Drum Restyle. Audio and Midi synchronize. |
|
AUDIO MULTITRACK PLAYER |
5+1 Audio tracks with separate slider control |
|
DJ |
Double Audio and Midi player with Tempo & Pitch stretching, Pfl, Sync, Tap tempo, Cue, Fx Pad, Backspin, Brake. |
|
JUKE BOX |
Play List, My Folders, SFX Special Effects. |
|
PIC & MOVIE |
Jpg & Mp4, Avi, Mov, Flv, Karaoke background, Movie/PDF To RGB, Pic List, Autoshow. |
|
DVI |
Video Monitor Out, Karaoke Lyric / Mirror. |
|
MENU |
Disk, Midi , Play Modes, Audio Edit, Language, Footswitch, Preferences, Controls, Video, Reg. Set up, Arabic Mode. |
|
MEDIA |
Internal Storage: SSD Card 16G. External Storage: Removable SATA 2/3 2.5 HD. USB: 3 Host + 1 device. |
|
SOUNDBOARD |
543 GM Sounds. 4 Sound Banks. Voice List. 48 Drum Sets + Stereo Special Kit. Live Drum Modeling. |
|
VOICES |
368 Preset Voices. New Stereo Grand Piano. 368 User Voice. 2nd Voice. V-Tone. Double Up / Down. Harmony. EFX Insert. Voice Editing. |
|
RAM SOUNDS |
46 voices ( instant loading). Hi-quality tonewheel Organ and Orchestral sounds. |
|
ARRANGER |
|
|
ARRANGER MODES |
Pianist ( Auto- Standard ). Bassist ( Easy_Expert ). Manual Bass. Bass to Lowest. |
|
STYLE MODELING |
Interactive Modeling Library with massive Audio Drums, Bass, Latin Groove, Piano, Guitar and Orchestral templates. |
|
PLAY MODES |
Master keyboard. Accordion Style. Accordion Classic. Organ with Pedalboard. Guitar mode with Efx ( thru Input). |
|
REGISTRATIONS |
4 Bank x 1024 Regs. Full Panel and function programming. |
|
DSP |
Type : Chorus, Reverb, Flanger, Phaser, Tremolo, Rotary, Echo Delay, Tap Delay, Equalizer, Distorsion, Amp simulator, Compressor, Filter. EFX Insert (54 types). 10 programmable Insert Chains. |
|
LIVE FX CONTROL |
Decay, Release, Filter and Resonance slider control applied to Player, Drum, Bass & Chords. Low_Hi Eq to Player. |
|
RECORDING |
HD Recording : 1 Stereo track. Loop. Audio Edit with Cut, Normalize. Midi Recording. Phrase and Song. |
|
MICRO |
XLR Input. Gain control. Volume. Reverb. Micro On/Off Edit. Talk. |
|
VOICETRON |
3 Voice Vocalizer. 10 Voicetron Presets + 10 User. |
|
INSTRUCTION MANUAL |
Html on board. |
|
MIDI |
In1 ( Gm ), In 2 ( Keyb ). Out. Thru. Midi Set up : Standard, Computer & Sequencer, Keyboard Right, Accordion, Player , Style. |
|
OUTPUT |
Left/Right Stereo, Pedal Volume, Sustain Pedal, Micro Out. |
|
INPUT |
Guitar ( Instrument ) / Micro2 . |
|
HEADPHONE |
Stereo Headphone. Aux separate Out Assign ( to Drums, Right, Bass, Click). |
|
OPTIONAL |
Footswitch 6 or 13, Volume Pedal, Sustain pedal, Bag. |
|
POWER SUPPLY |
External 15 V. |
|
AMPLIFIER |
2 x 20 watts. 2 x Midrange speakers + 2 x Tweeters. Speaker On /Off. |
|
DIMENSIONS |
115 x 39 x 12,5 cm (46 x 15.6 x 5 inches). |
|
WEIGHT |
15 Kg (33 lbs). |
