Product Overview

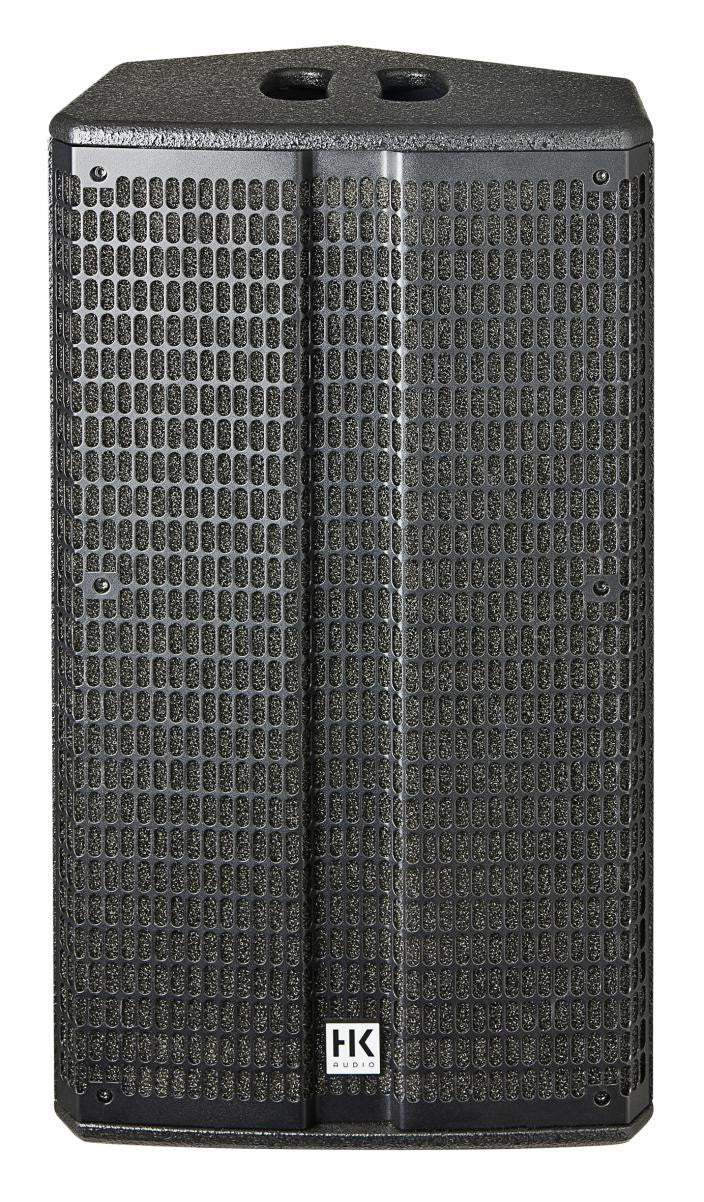

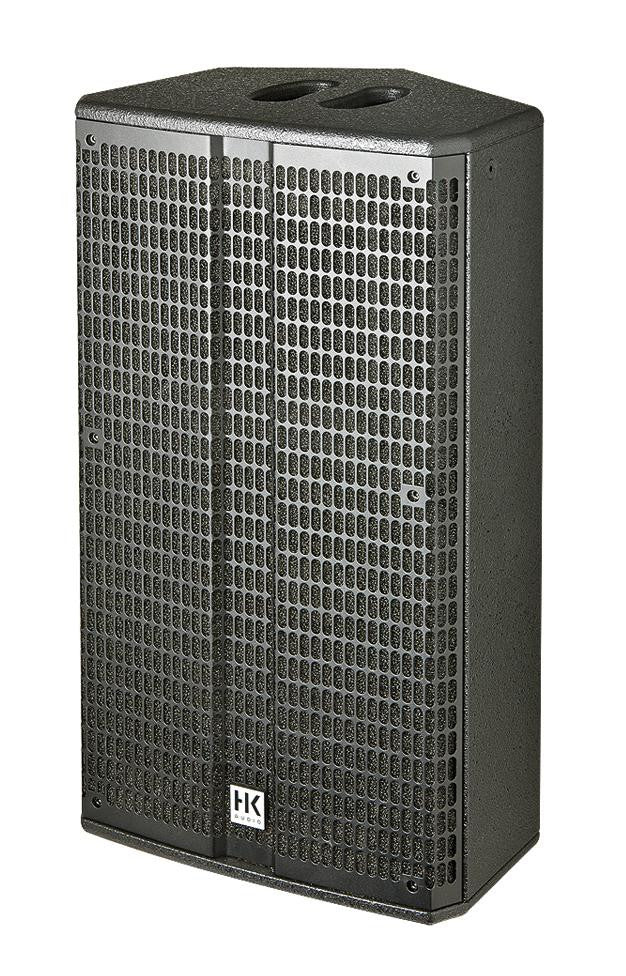

L5 112 XA

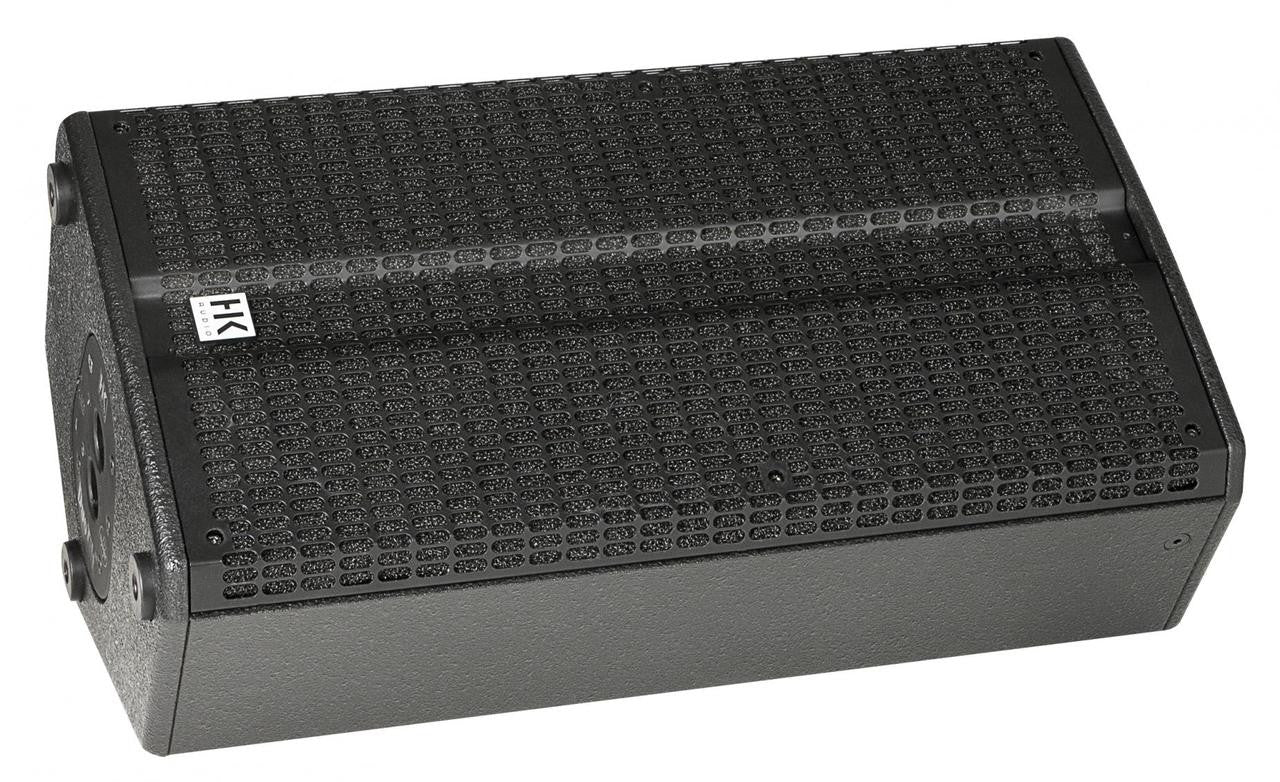

The 12"/1" model is housed in a multipurpose enclosure tuned to deliver the highest sound pressure levels (136 dB SPL peak). A switchable filter configures it for use as a top unit (adding long range capability) in systems with Linear SUB 2000/ 2000 A units. The L5 112 XA also makes an excellent monitor with a plenty of gain before feedback. Its rotatable 60° x 40° CD horn provides the right coverage pattern for each scenario.

Application: Mid/High Unit, Monitor
1000 Watt Class-D (650 W + 350 W, biamped)
12" Speaker with 2,5" voice coil
1" Driver with 1,75" voice coil
136 dB Max SPL Peak @ 10% THD (halfspace)
CD Horn (60° x 40°) , rotatable
Rugged hybrid (birch multiplex /MDF) housing
2 separate Inputs

EQ switch (Top / Monitor)

Model	L5 112 XA
Max SPL	128 dB half space (@ 10% THD)
Max SPL peak	136 dB half space (@ 10% THD)
Max SPL calculated	137 dB half space
Frequency response +/- 3 dB	100 Hz - 18 kHz
Frequency response -10 dB	72 Hz - 20 kHz
Power Rating	1000 Watt
Low/Midrange amplifier	650 Watt @ 4 ohms
HF Amplifier	350 Watt @ 4 ohms
Amplifier	Class D - Biamped
Active protection circuits	Undervoltage-Protection, Thermoprotection, Short-Circuit Protection, Overcurrent-Protection, Subsonic 24dB/oct., Peak limiter
Low/Mid Speaker	1x 12"
HF Driver	1"
Horn characteristics	60° x 40° CD horn, rotatable
Cut-off Frequency active	1,65 kHz, 24 dB/oct.

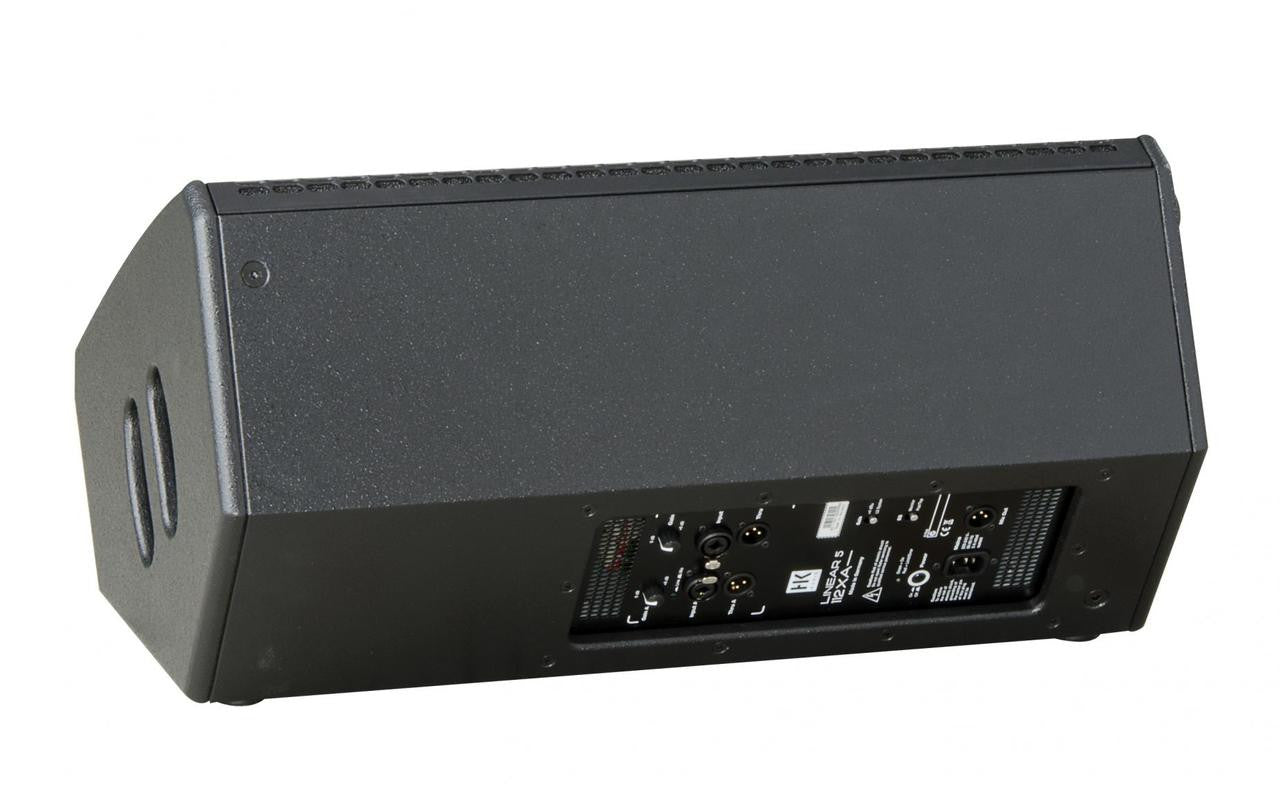

Connections	2x XLR–1/4"-Combo In, 2x XLR-Thru, 1x XLR-Mix Out
Input Sensitivity	+4dBu @ Gain Centerclick / L5 System Level
Sensitivity switch	Line/Mic Input A
Equalizer	EQ switch Flat/Monitor
Angles up	33°
Pole mount	DuoTilt 3/7
Rigging points	3x M8
Handles	2, integrated
Enclosure	Hybrid (birch multiplex / MDF)
Grille	2 mm metal grille backed with black acoustic foam
Finish	Acrylic enamel, black
Optional accessories	Protective cover
Dimensions (WxHxD)	37 x 67 x 30 cm
Weight	21.1 kg / 46.5 lbs
